Geared-Up and Ready to Shred
The perfect mountain bike for kids loving life outdoors – blending the right-size frame, the right spec, and more attitude.

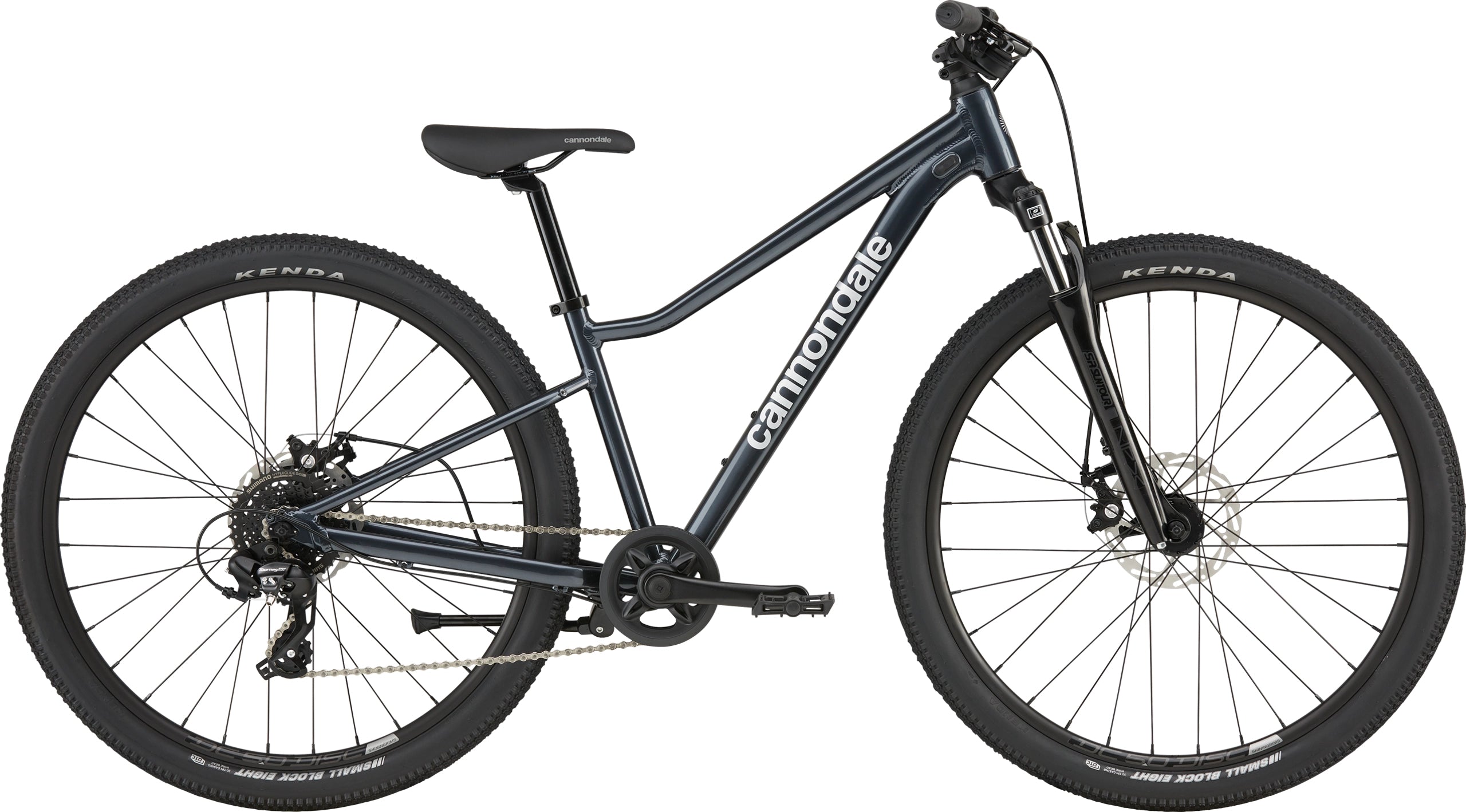

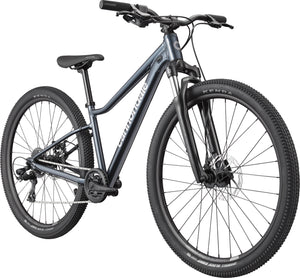

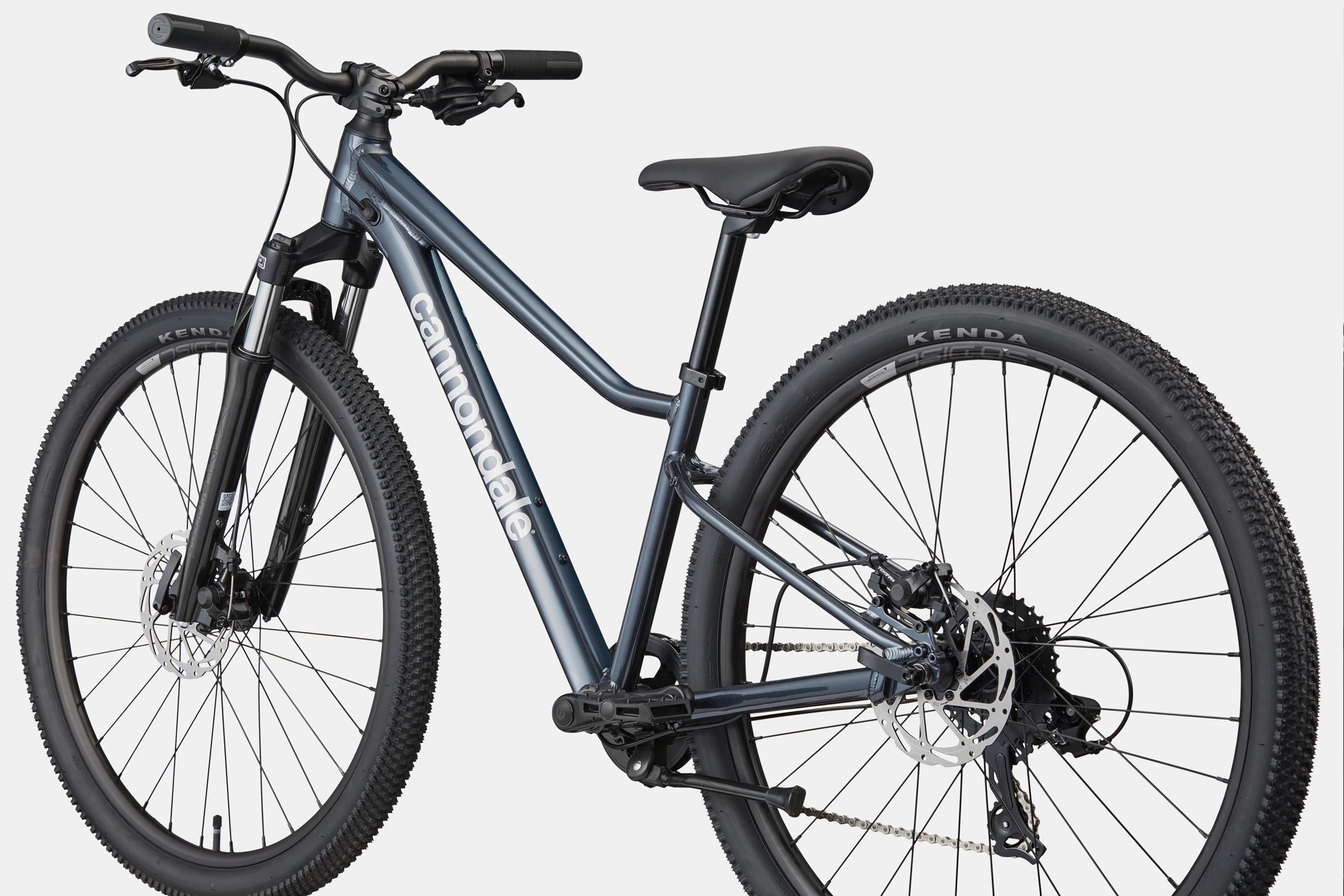

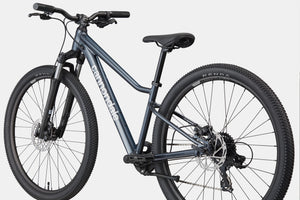

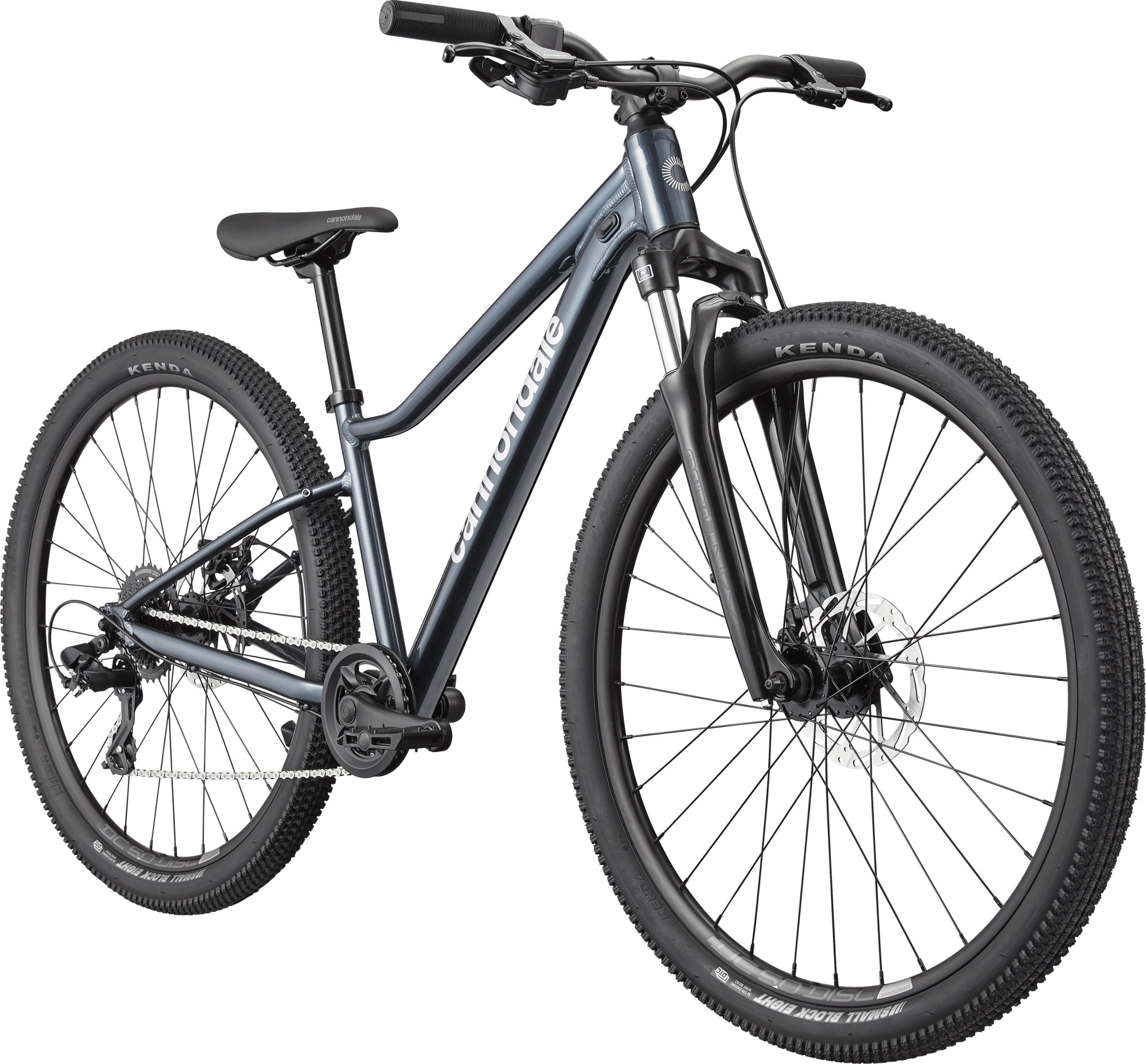

This is a high-performance mountain bike for youths who have outgrown kids' bikes, but are not quite big enough for an adult MTB yet. With a lightweight aluminum frame, Suntour NEX suspension fork, and a smooth-shifting 8-speed blend of Shimano and microSHIFT components, this fun-machine is ready to tackle mountain trails, cruise around town, and build skills that will last a lifetime.
What It's For
Trail riding fun, getting around, and building skills.
Highlights
-
Durable Frame: SmartForm C3 Alloy frame is light, durable, and backed by our awesome limited lifetime warranty.
-
Smooth Shifting: Light-action 8-speed Shimano/microSHIFT gearing made for smaller hands.
-

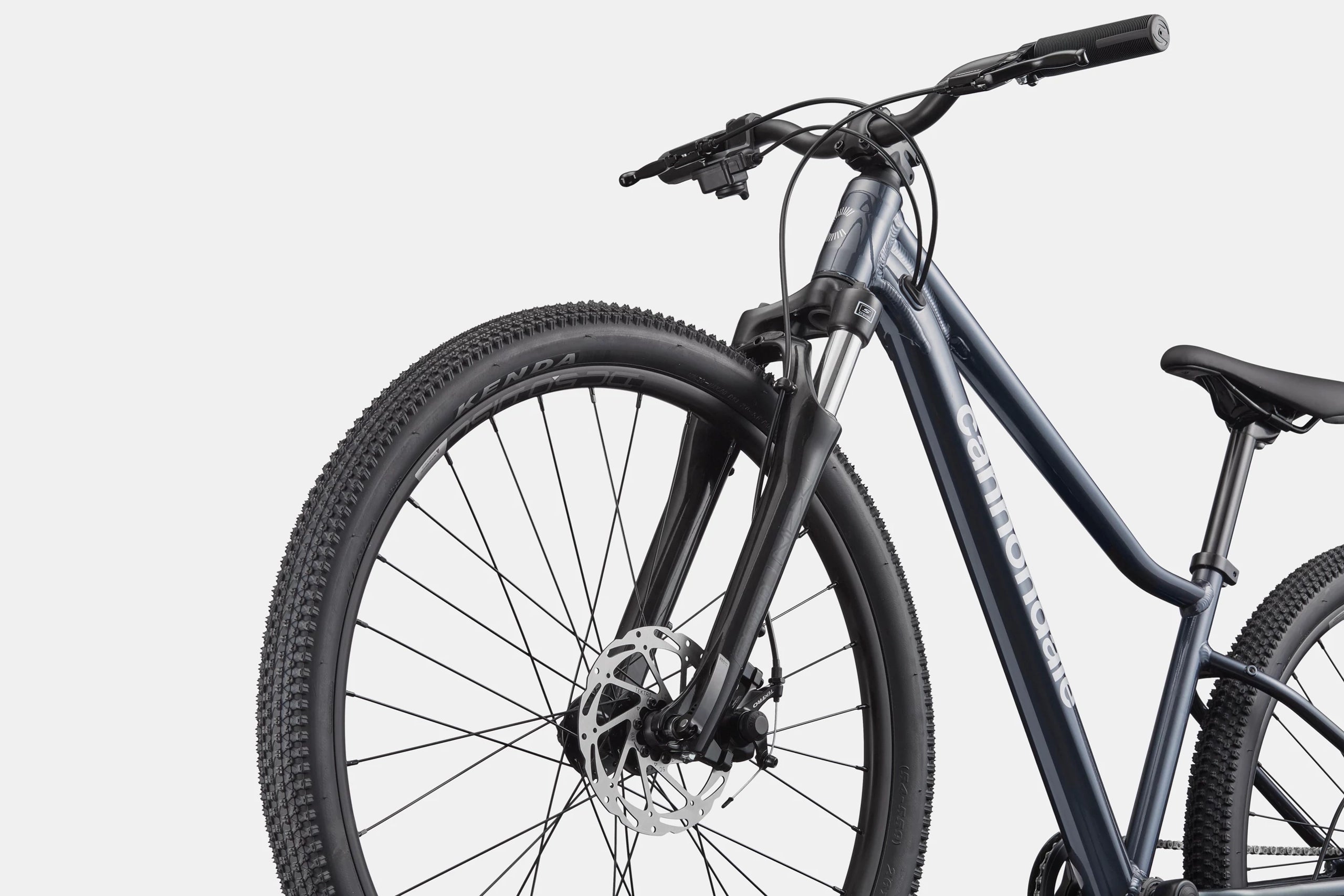

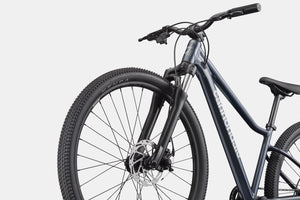

Front Suspension: Bump-smoothing Suntour NEX suspension fork (63mm travel) keeps you in control.
-
Reliable Stopping Power: Powerful Tektro mechanical disc brakes.
-
Fast Rolling: 26" alloy rims with Kenda Small Block 8 knobby tires that are grippy and fast.
Technical Specifications
General Details
-
Platform: Kids Trail 7 to 12
-
Model Name: Kids Trail 26
-
Model Code: C5201GU
Frameset
-
Frame: SmartForm C3 Alloy, StraightShot hidden cable routing, disc brakes, rack/fender mounts
-
Fork: Suntour NEX, 63mm, coil with preload adjuster
-
Headset: Semi-Integrated, 1-1/8"
Drivetrain
-

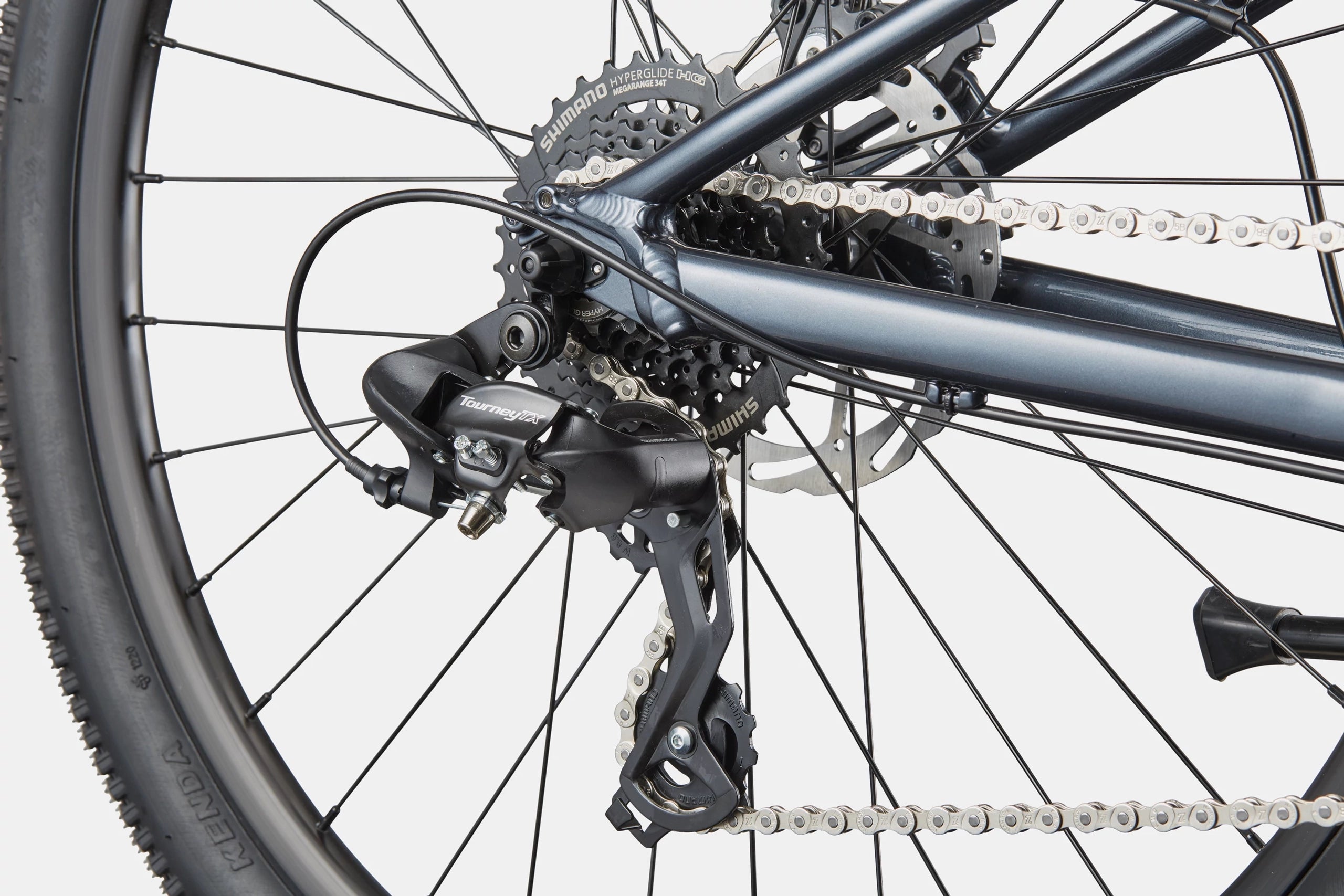

Rear Derailleur: Shimano TX, 8-speed
-
Shifters: microSHIFT, trigger style, 8-speed
-
Chain: KMC X8, 8-speed
-
Crank: Prowheel, Pro-V30, 152 mm length, 30T
-
Rear Cogs: Shimano HG31, 11-34, 8-speed
-
Bottom Bracket: Cartridge, square taper
Brakes
-
Brakes: Tektro Mechanical Disc, 160/160mm rotors
-
Brake Levers: Alloy, linear pull
Wheels
-
Rims: Cannondale Disc, double wall w/eyelet, 32h
-
Spokes: Stainless steel, 14g
-
Tire Size: 1.95
-
Wheel Size: 26"
-
Hubs: (Front) Sealed Alloy Disc, 12x100mm / (Rear) Sealed Alloy Disc
-
Tires: Kenda Small Block 8, 26x1.95"
Components
-
Handlebar: 6060 Alloy, 25mm rise, 10° sweep, 30mm rise, 580mm
-
Stem: Alloy Ahead, 31.8mm
-
Grips: Cannondale Performance
-
Saddle: Cannondale Kids Comfort
-
Seatpost: Alloy, 25.4mm
Extra
-
Kickstand: Extra 1
