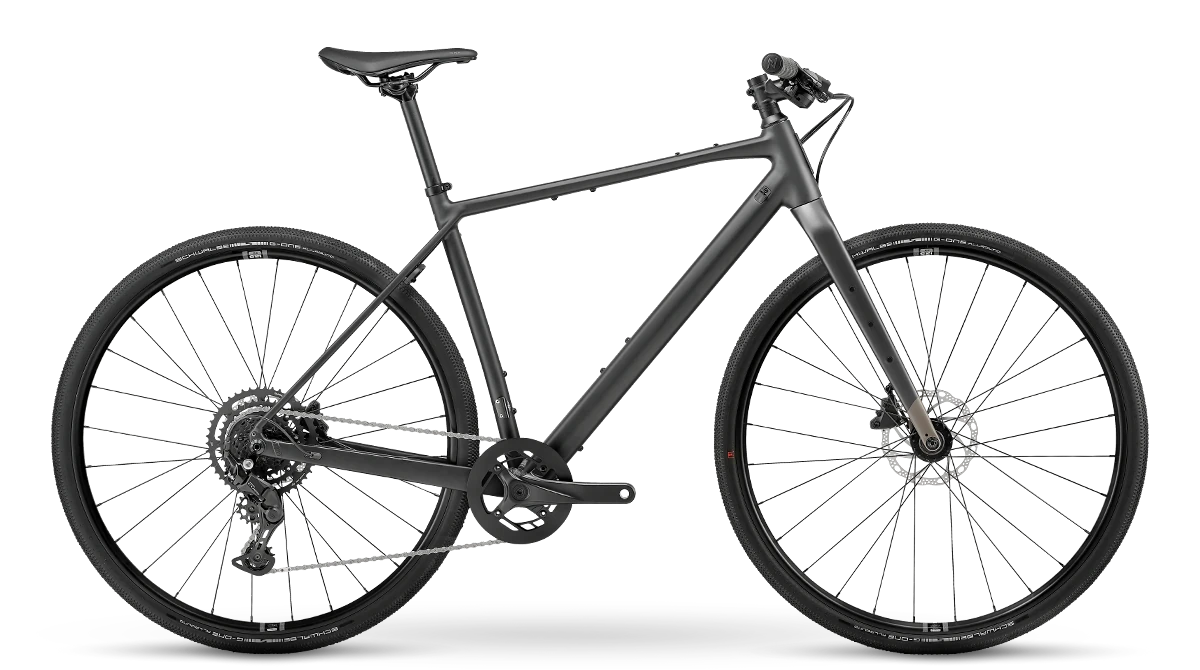

Norco Search A Flat Bar

Built for riders who want versatility without compromise, this aluminum gravel platform blends modern geometry, carbon fork compliance, and dependable components to handle everything from pavement to dirt roads with confidence.

With stable handling, wide tire clearance, and a simple, durable drivetrain, it’s designed to be equally comfortable on long gravel rides, commuting, or mixed-surface adventures.

Lightweight Frame & Carbon Fork

The butted aluminum frame with smooth welds delivers a refined ride feel and long-term durability, while the carbon fork helps reduce vibration and sharp impacts from rough roads. Thru-axle spacing front and rear improves tracking and steering precision when the terrain gets loose.

Drivetrain & Braking

Shimano CUES 9-speed shifting provides reliable, easy-to-maintain performance with a wide 11–46T gear range suited for climbs, loaded riding, and rolling gravel. Hydraulic disc brakes offer consistent stopping power and control in all weather conditions.

Wheels & Tires

WTB tubeless-ready rims paired with Formula hubs create a strong, dependable wheelset for mixed terrain. Schwalbe G-One tires balance rolling efficiency with grip, making them ideal for gravel, pavement, and everything in between.

🔧 Technical Specifications

Frameset

Frame: Search Butted Aluminum with Smooth Welds
Fork: Search Carbon, 51mm Offset, 12 × 100mm Thru-Axle
Headset: FSA Integrated Sealed Bearings No. 42, Tapered 1-1/8" – 1.5" (IS42/28.6 | IS52/40)
Seatpost Clamp: Aluminum, Bolted, 31.8mm

Drivetrain

Rear Shifter: Shimano CUES SL-U4000 Rapid Fire
Rear Derailleur: Shimano CUES RD-U4000
Crankset: Prowheel, 38T, ST, 170mm (S1–S4), 172.5mm (S5)
Bottom Bracket: Shimano Cartridge Bearing, 68mm BSA
Cassette: Shimano CS-LG300, 11–46T, 9-Speed
Chain: KMC Z9

Brakes

Front Brake: Tektro HD-R280 Hydraulic
Rear Brake: Tektro HD-R280 Hydraulic
Front Rotor: Tektro 6-Bolt, 160mm
Rear Rotor: Tektro 6-Bolt, 160mm
Brake Levers: Tektro HD-R280 Hydraulic, 3-Finger, Reach Adjust

Wheels & Tires

Rims: WTB ST i25 2.0, 28h, 25mm Internal Width
Front Hub: Formula, 12 × 100mm, 28h, 6-Bolt
Rear Hub: Formula, 12 × 142mm, HG, 28h, 6-Bolt
Spokes/Nipples: Sapim Leader 2.0mm, Black with Black Brass Nipples
Front Tire: Schwalbe G-One Comp, K-Guard Recyclable, 700 × 40c
Rear Tire: Schwalbe G-One Comp, K-Guard Recyclable, 700 × 40c

Cockpit & Components

Handlebar: Norco Alloy, 620mm (S1, S2), 640mm (S3–S5), 15mm Rise
Stem: Norco Alloy, 70mm Length, 31.8mm Clamp
Seatpost: Aluminum, 27.2mm
Saddle: Selle Royale SRX Gravel, 148mm
Grips: Norco Lock-On, 130mm

Weight

Weight: 12.6 kg (27.8 lb)
Measured Size: S3
