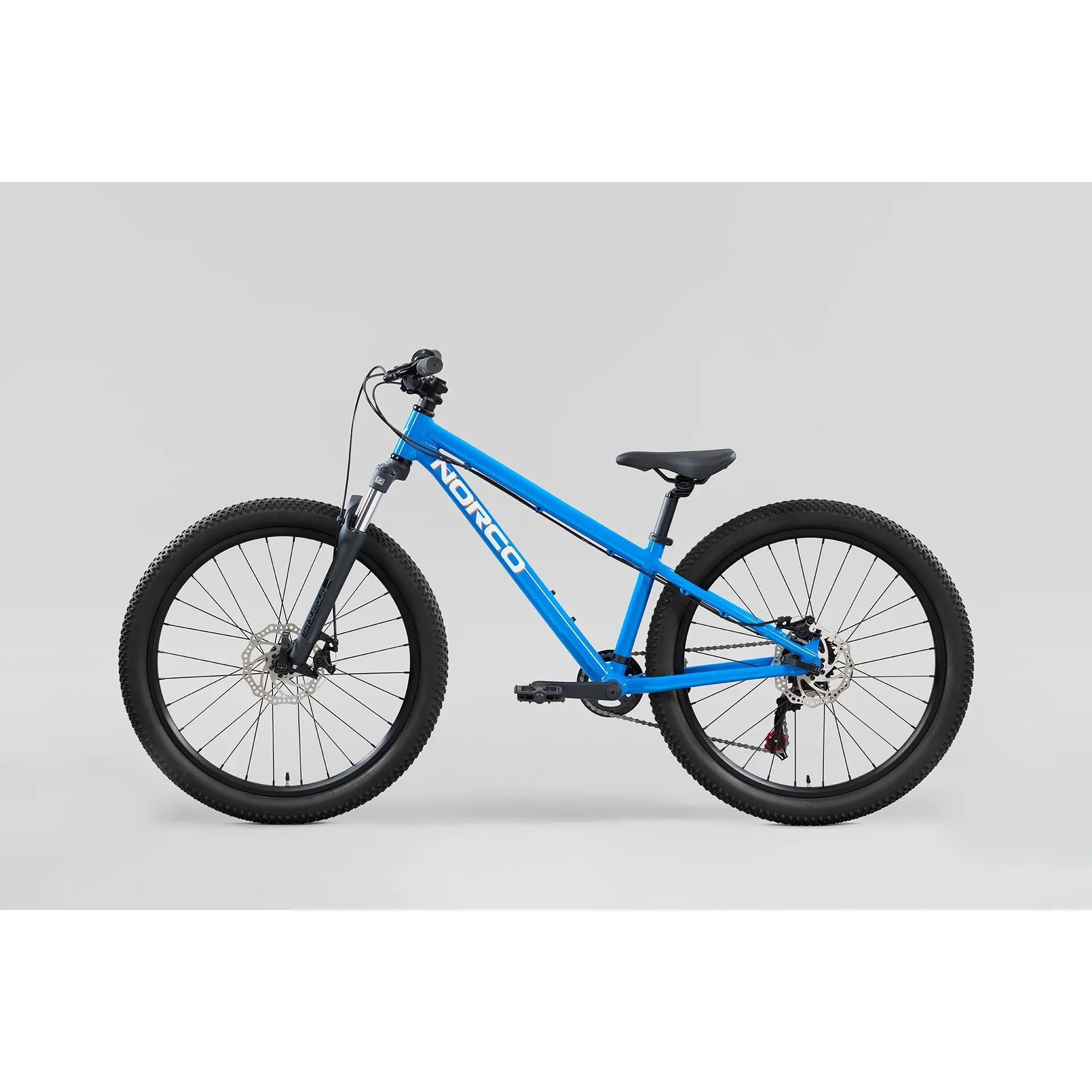

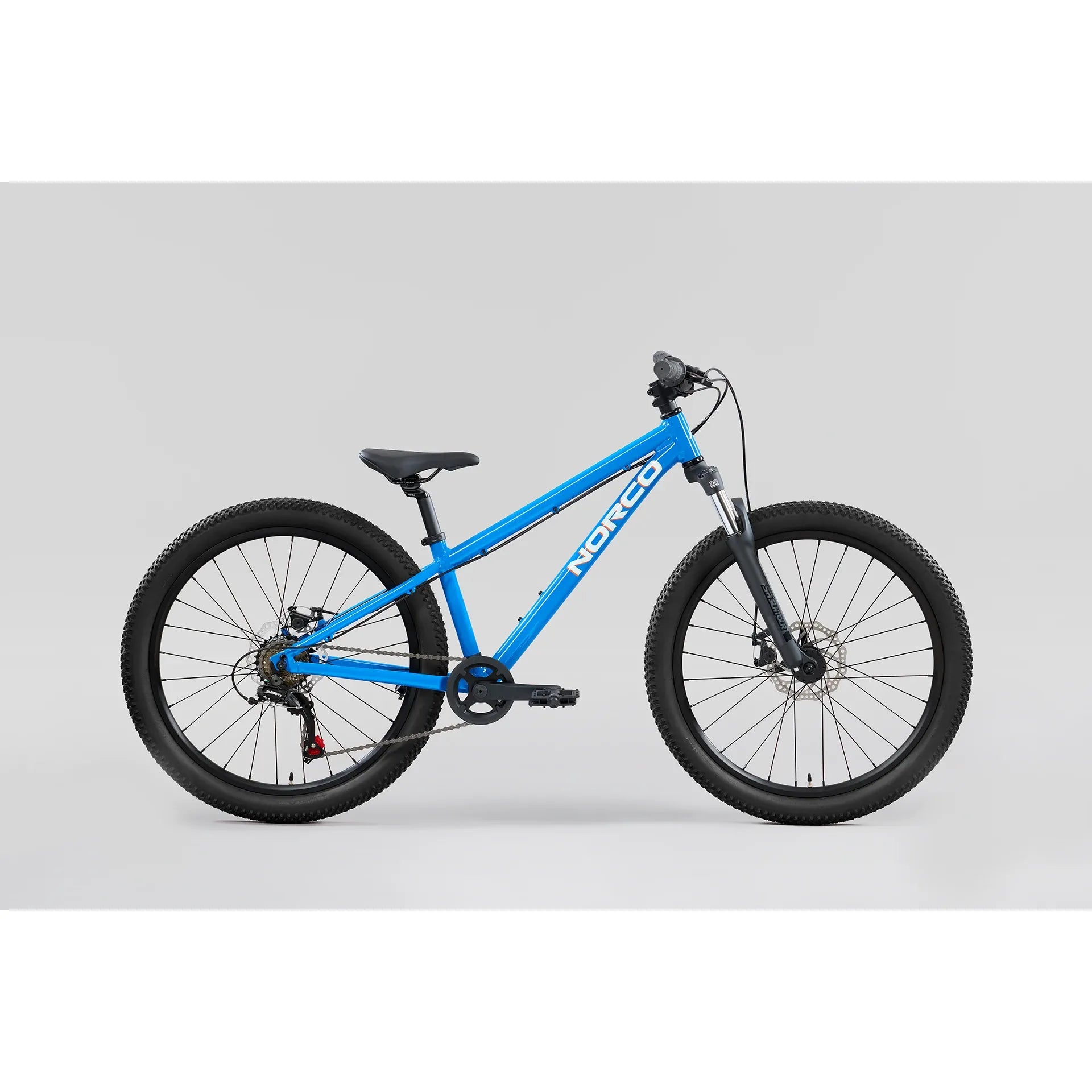

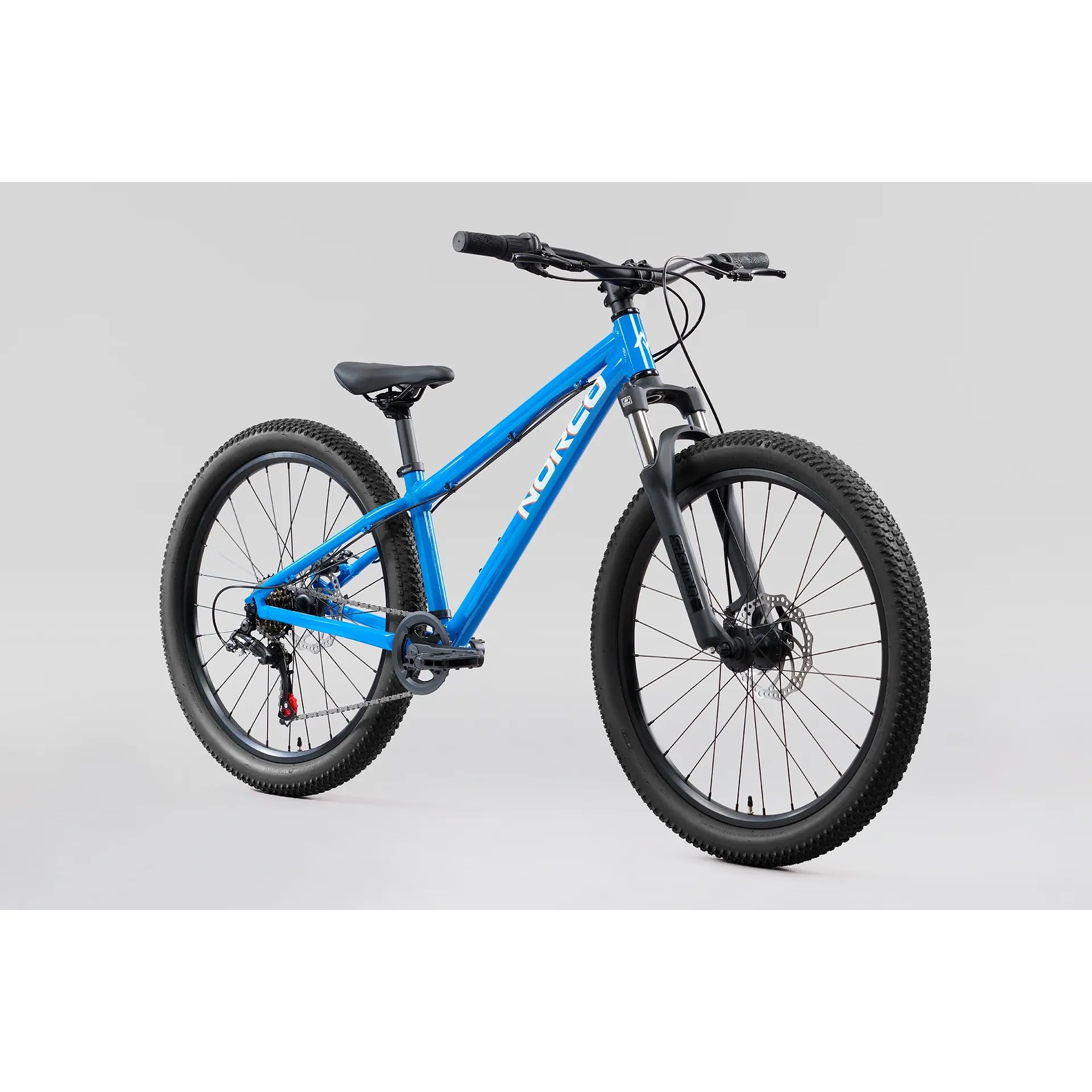

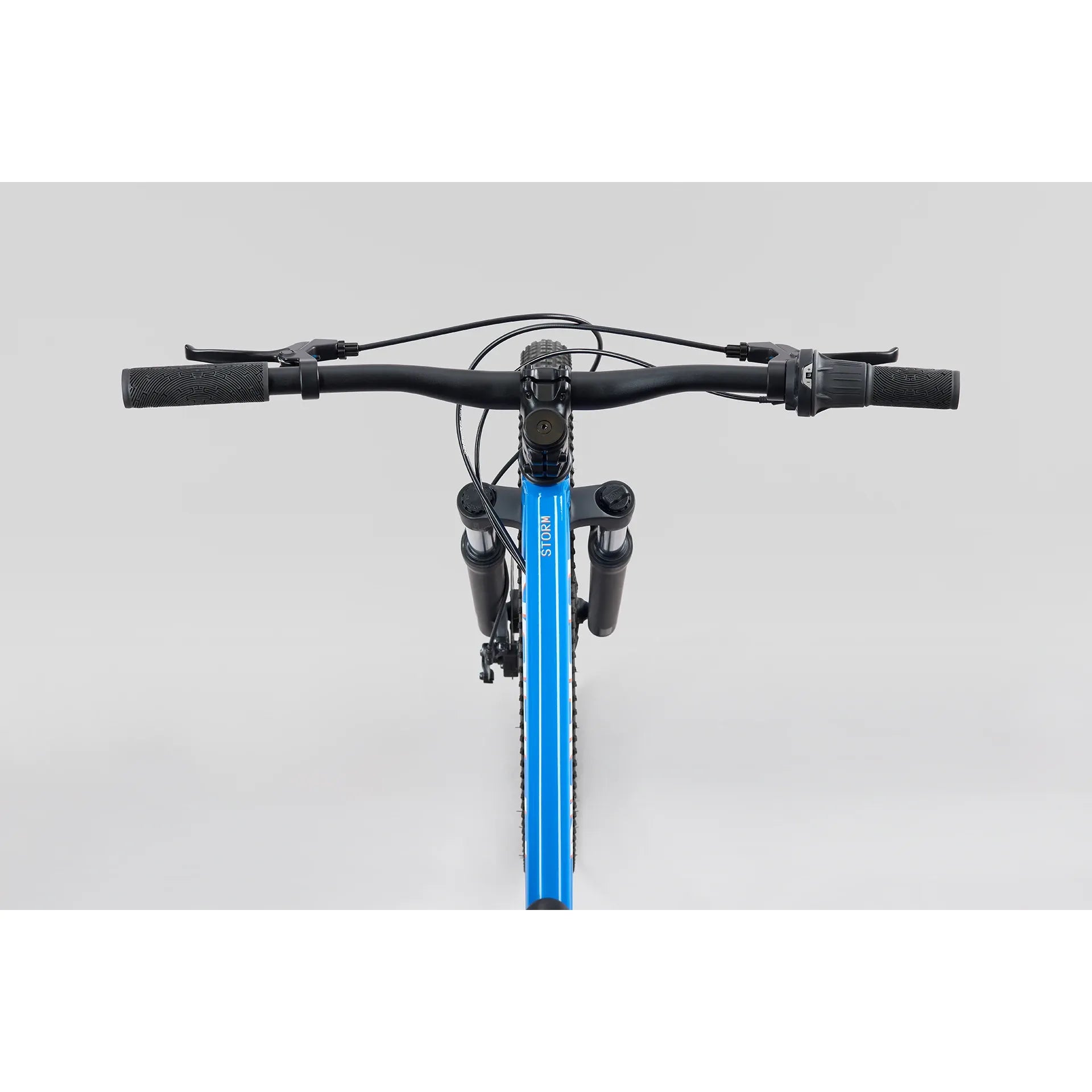

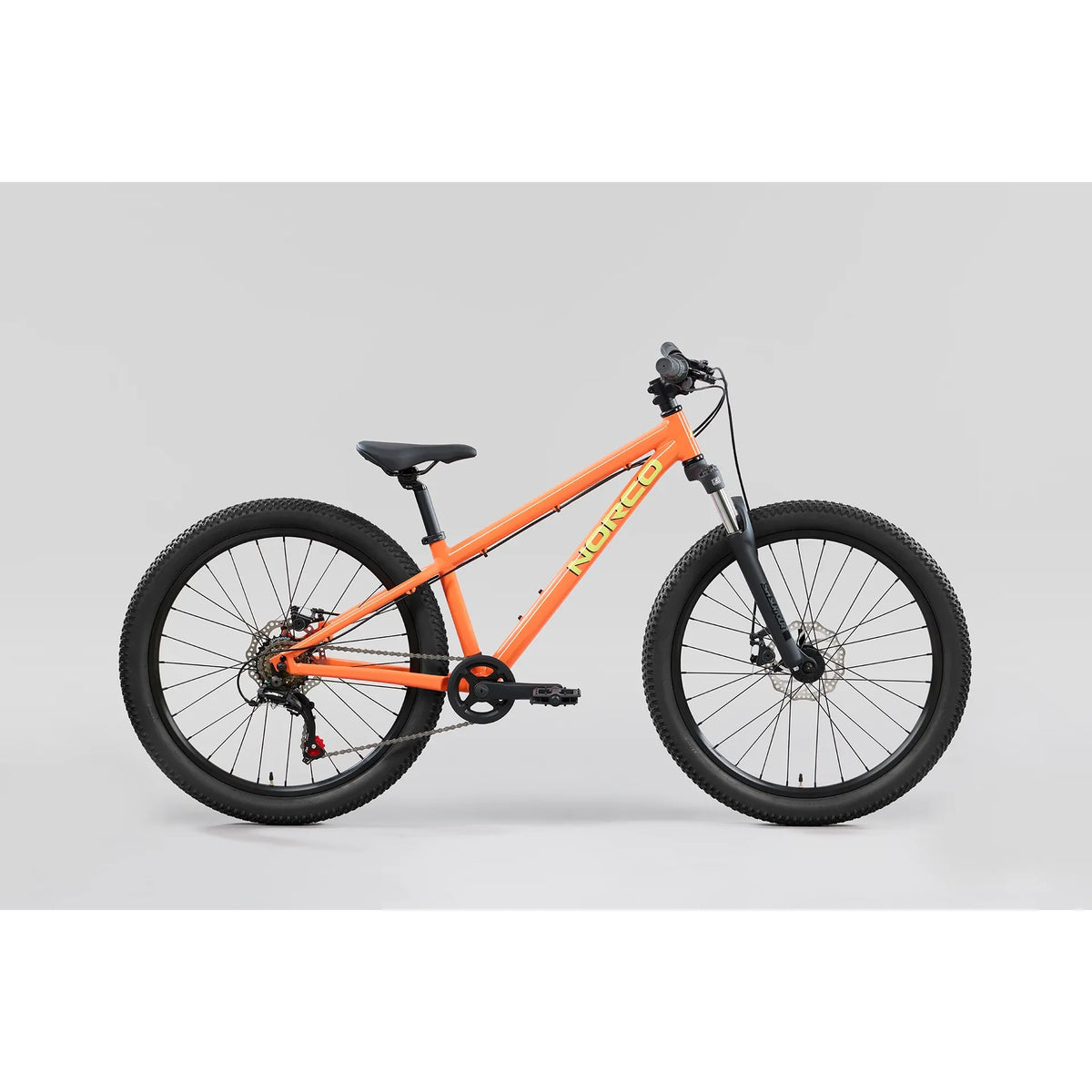

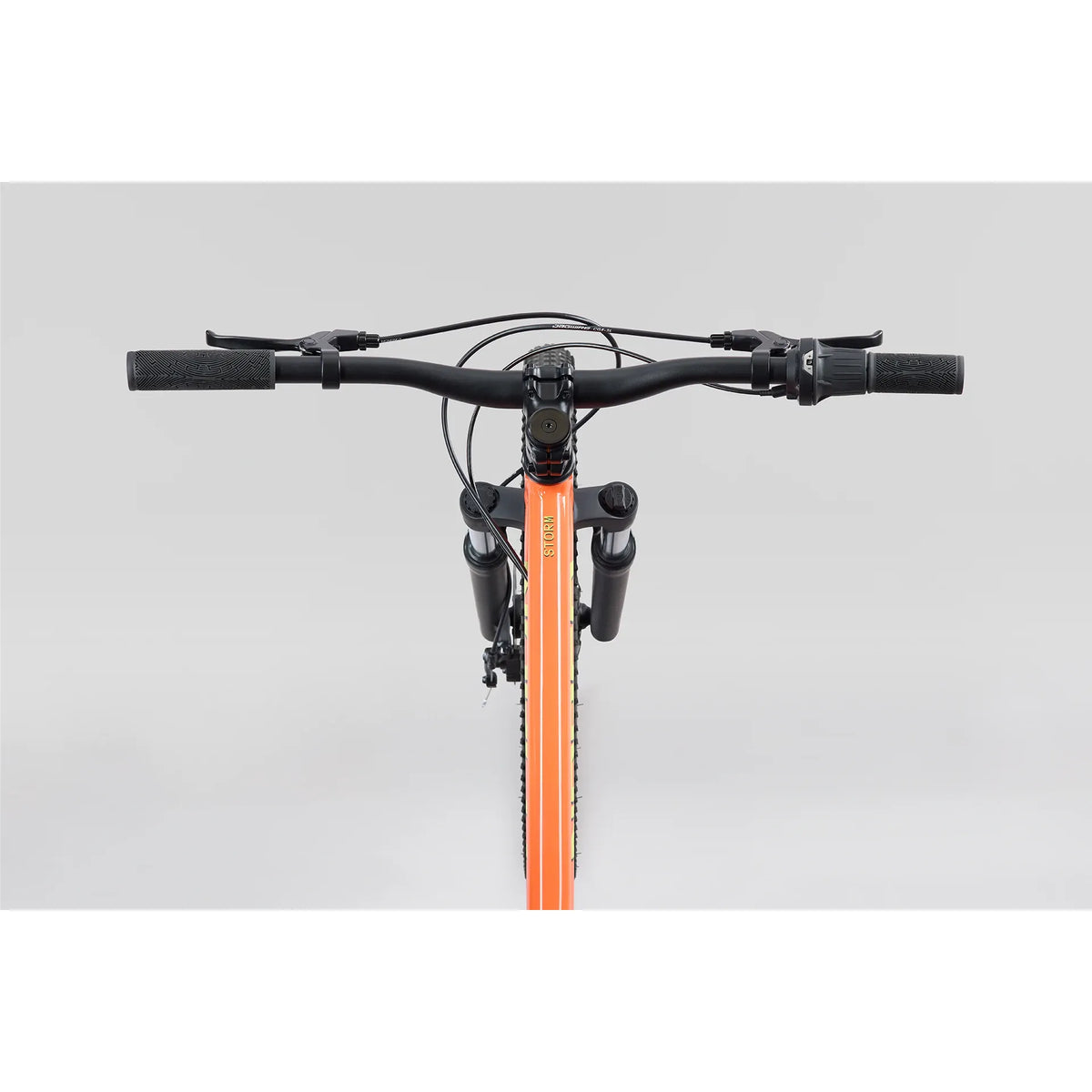

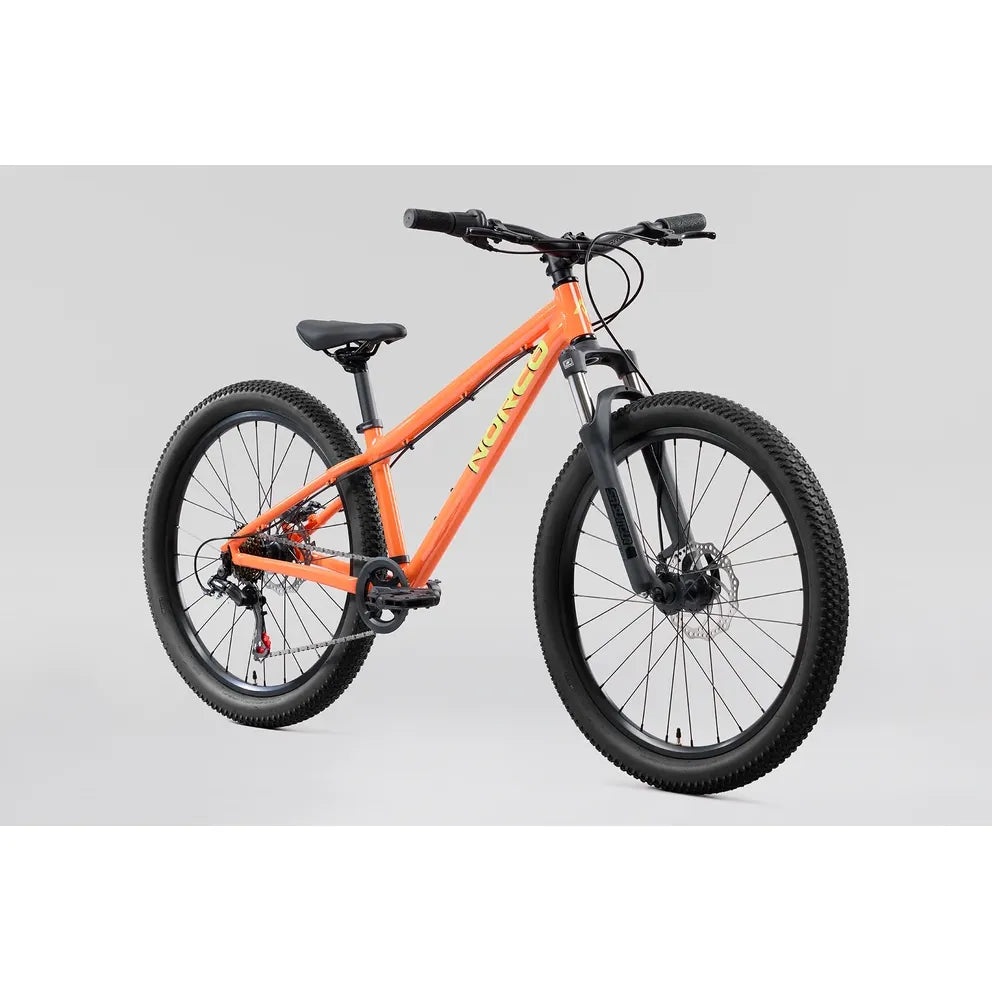

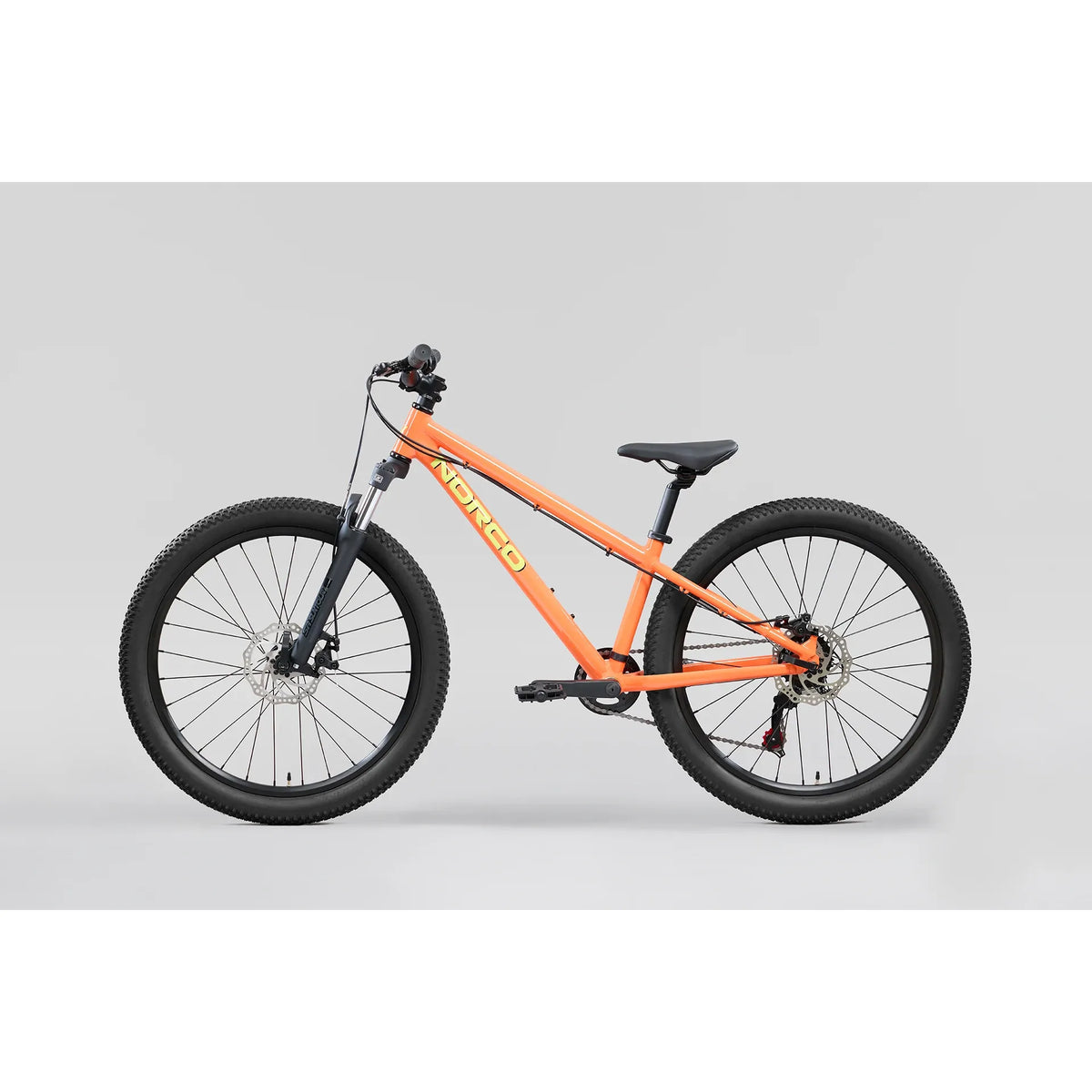

2027 Norco Storm 24

Frameset
FORK: Sr Suntour XCT Coil w/ Soft Spring and Preload, 80mm, 9x100mm QR

Drivetrain
REAR SHIFTER: Shimano SL-RV200-6R, 6sp, gripshift
REAR DERAILLEUR: Shimano TZ-500, 6sp, Direct mount
CRANKSET: Alloy 3pc, 140mm, 28T Narrow Wide
BOTTOM BRACKET: Sealed Bearing, ST 68mm
CASSETTE: Shimano MF-TZ500-6, 14T-28T, 6sp, Freewheel
CHAIN: KMC Z6

Brakes
FRONT BRAKE: C-Star, resin pads, Mechanical Disc
FRONT BRAKE ROTOR: 160mm, 6-bolt
REAR BRAKE: C-Star, resin pads, Mechanical Disc
REAR BRAKE ROTOR: 160mm, 6-bolt
BRAKE LEVERS: C-Star Alloy Jr. levers w/ reach adjust

Components
HANDLEBAR: Alloy Jr. Riser, 640mm, 30mm rise
STEM: Alloy, 45mm length, 31.8mm clamp
SEATPOST: Norco Alloy, 27.2mm, 250mm
HEADSET: External Cup Ball Bearing, 1-1/8" EC34
SADDLE: Norco Jr XC, steel rail
GRIPS: Norco Youth, 115mm length
PEDALS: Jr. MTB Flat, 9/16
SEATPOST CLAMP: Norco Alloy Bolted, 31.8mm ID

Wheels
FRONT HUB: Formula DC-1420, 9x100mm QR, 28h, 6-bolt
REAR HUB: Formula XDS-2003, 9x135mm QR, Freewheel, 28h, 6-bolt
RIMS: Aluminum DW, 28h, 24" MTB
FRONT TIRE: CY Trail, 24x2.25, Wire
REAR TIRE: CY Trail, 24x2.25, Wire
