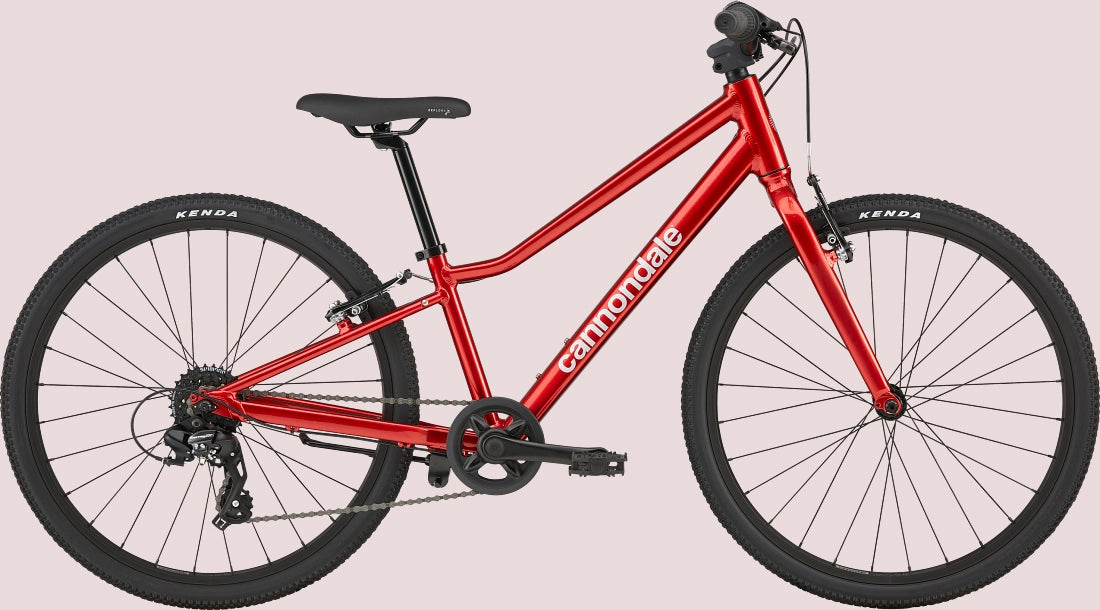

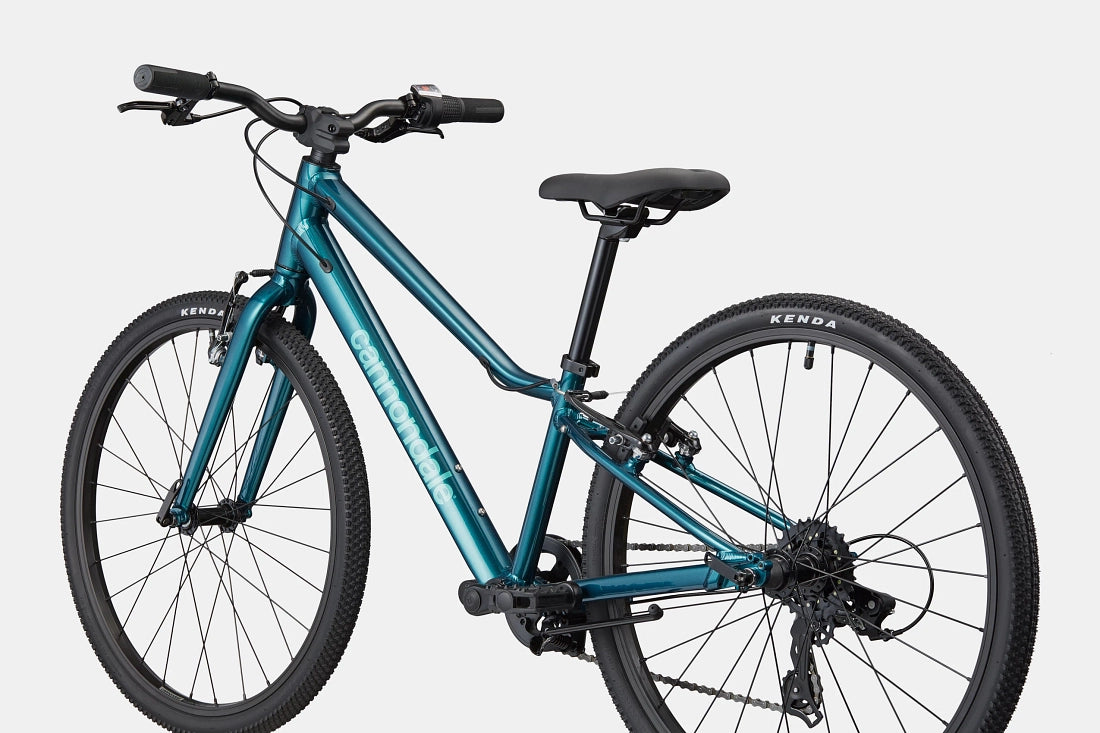

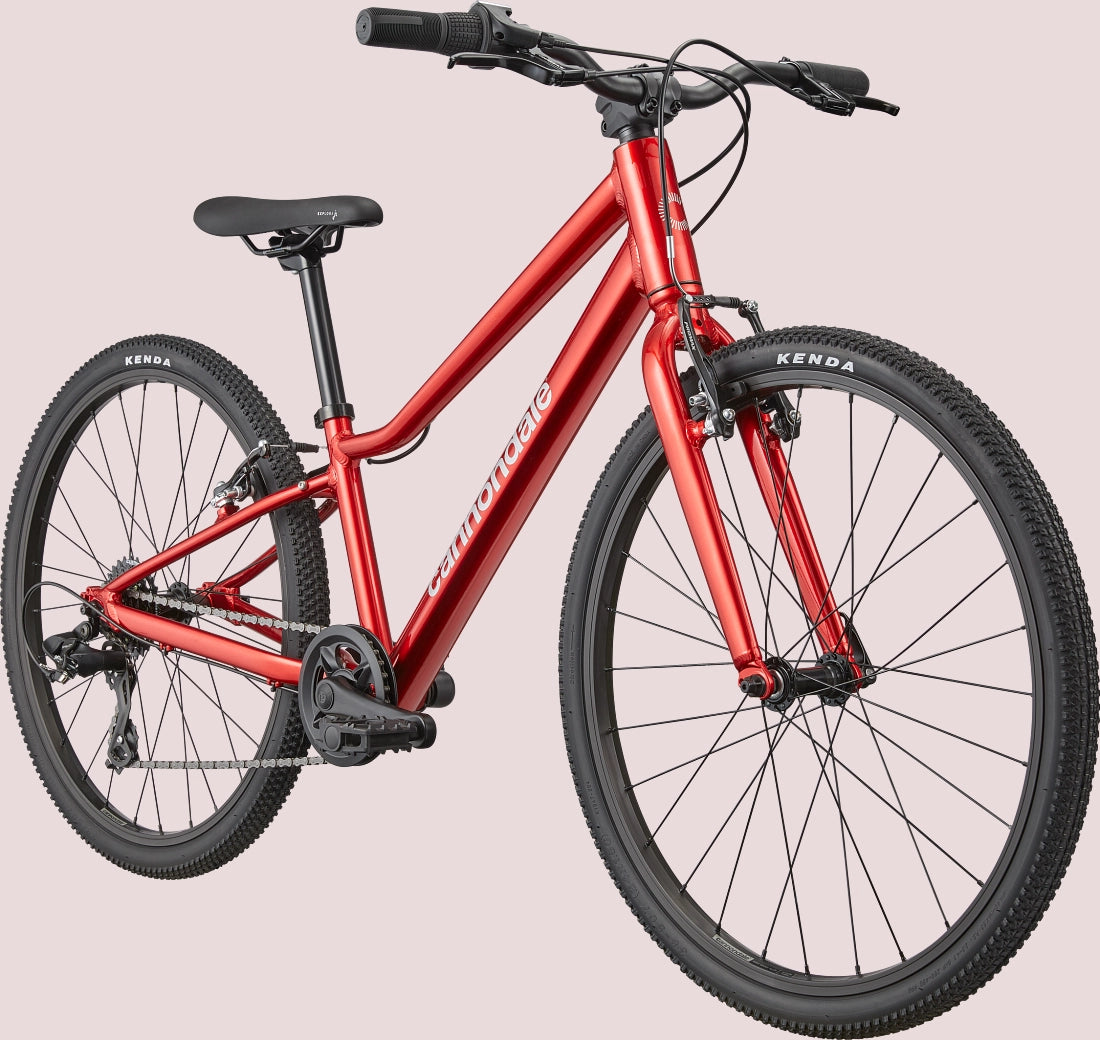

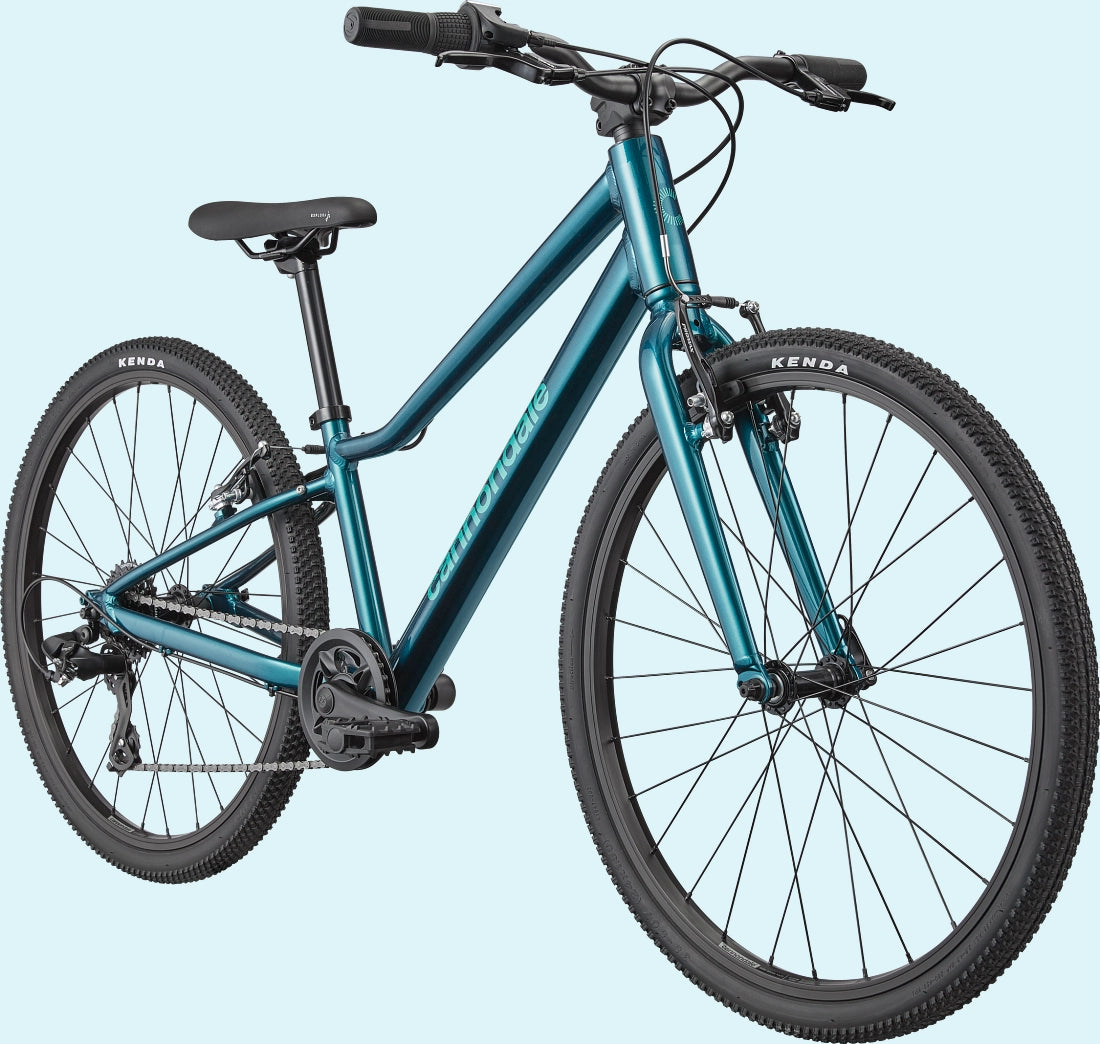

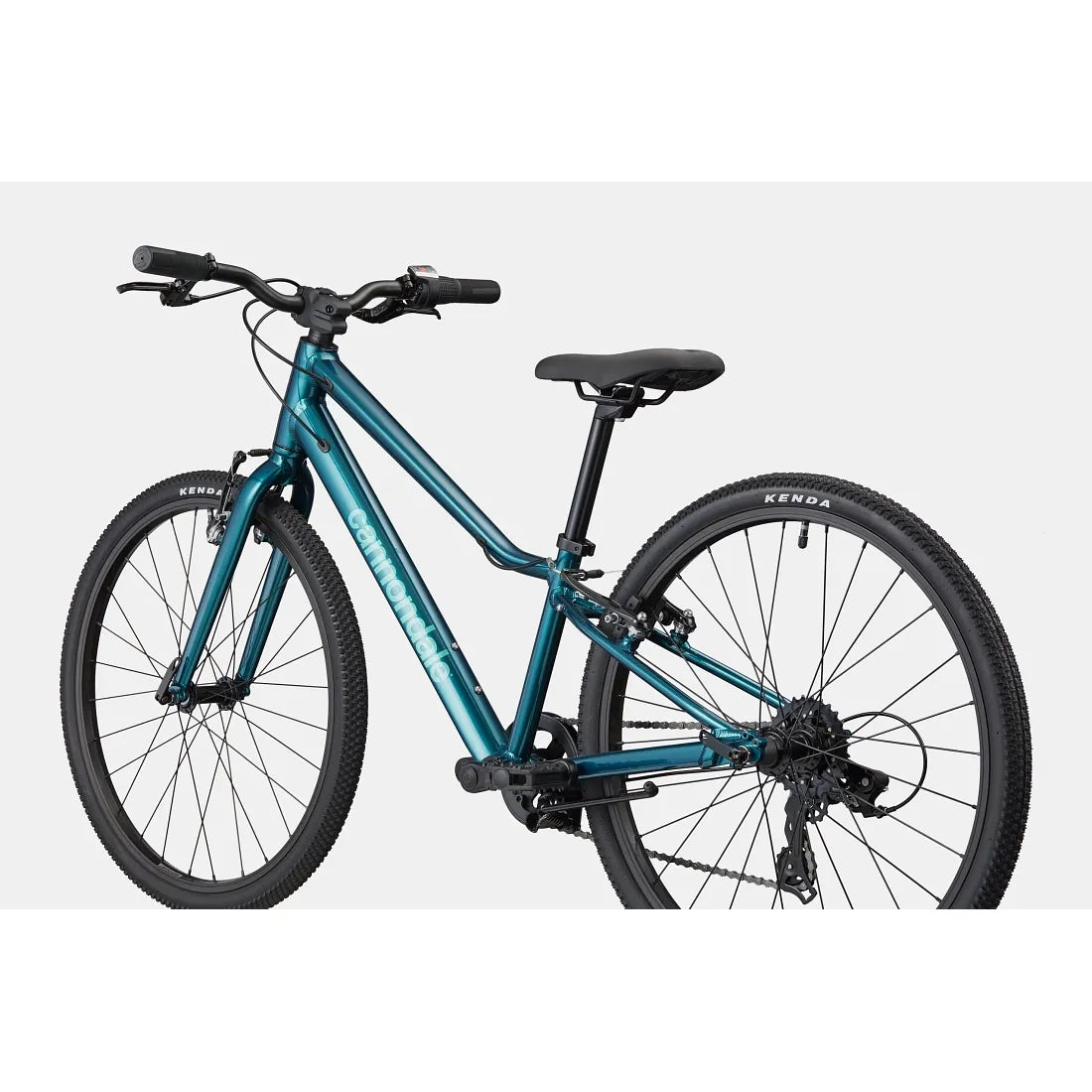

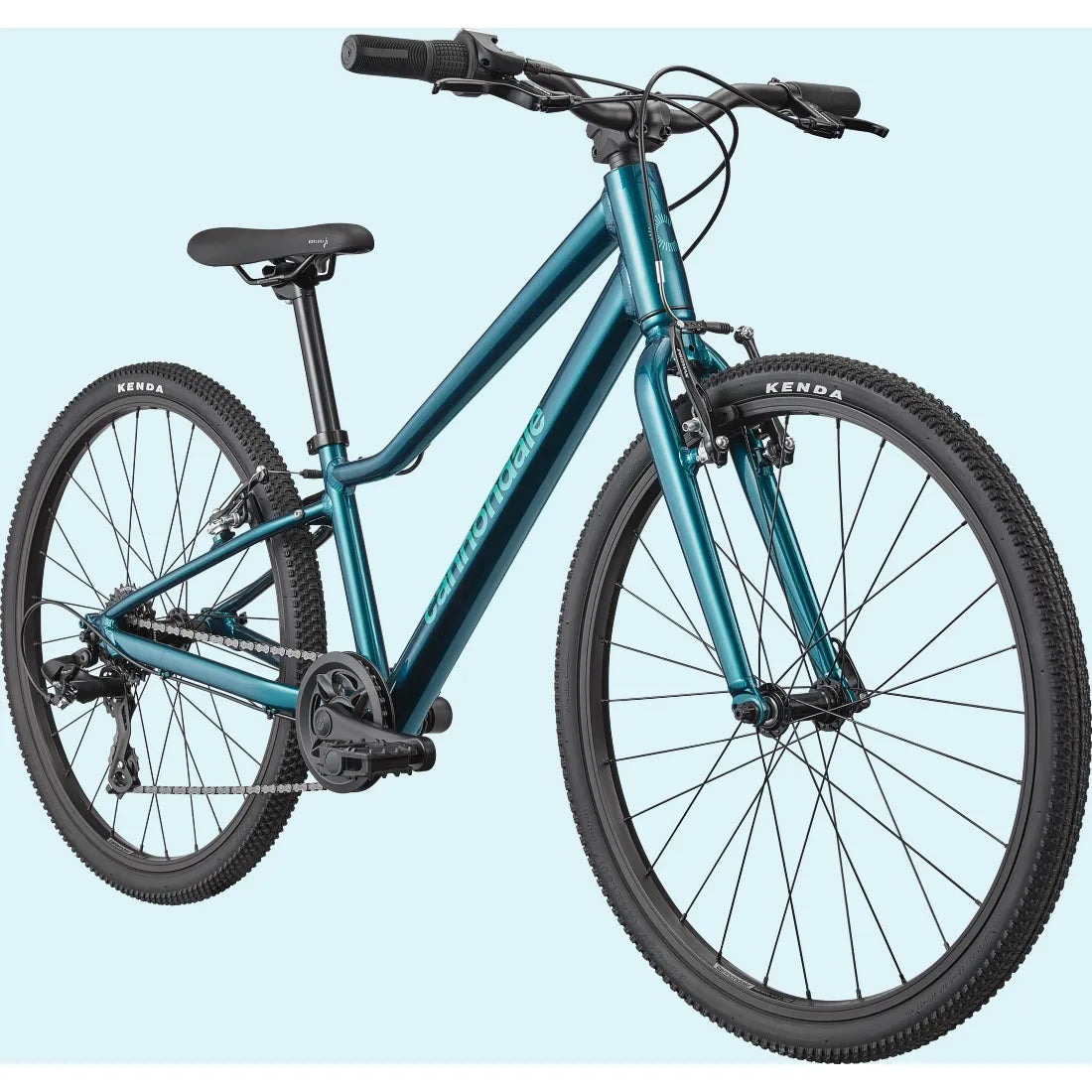

Kids Quick 24

Explore More

With its lightweight alloy frame, 24" wheels and smooth suspension fork, the Trail 24 is built for smooth speed and adventure, on or off-road.

What it's built for
Confident riders ready to increase speed and build off-road skill.
Kids 4'1"–4'6" (124–137 cm)

Highlights

• Durable lightweight alloy frame — easier to handle and more fun to ride

• Bump-smoothing 50mm front suspension fork

• Wide-range 8-speed gearing with light-action shifter made for smaller hands

• 24" alloy rims with fast-rolling knobby tires for grip and control

DETAILS

Platform: Kids Quick 7 to 12

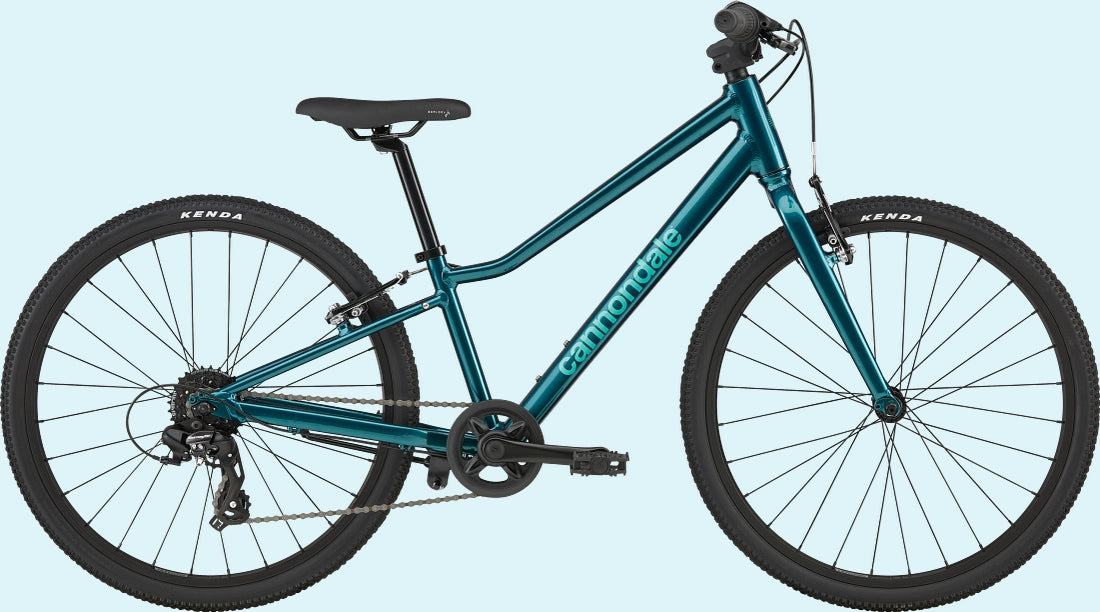

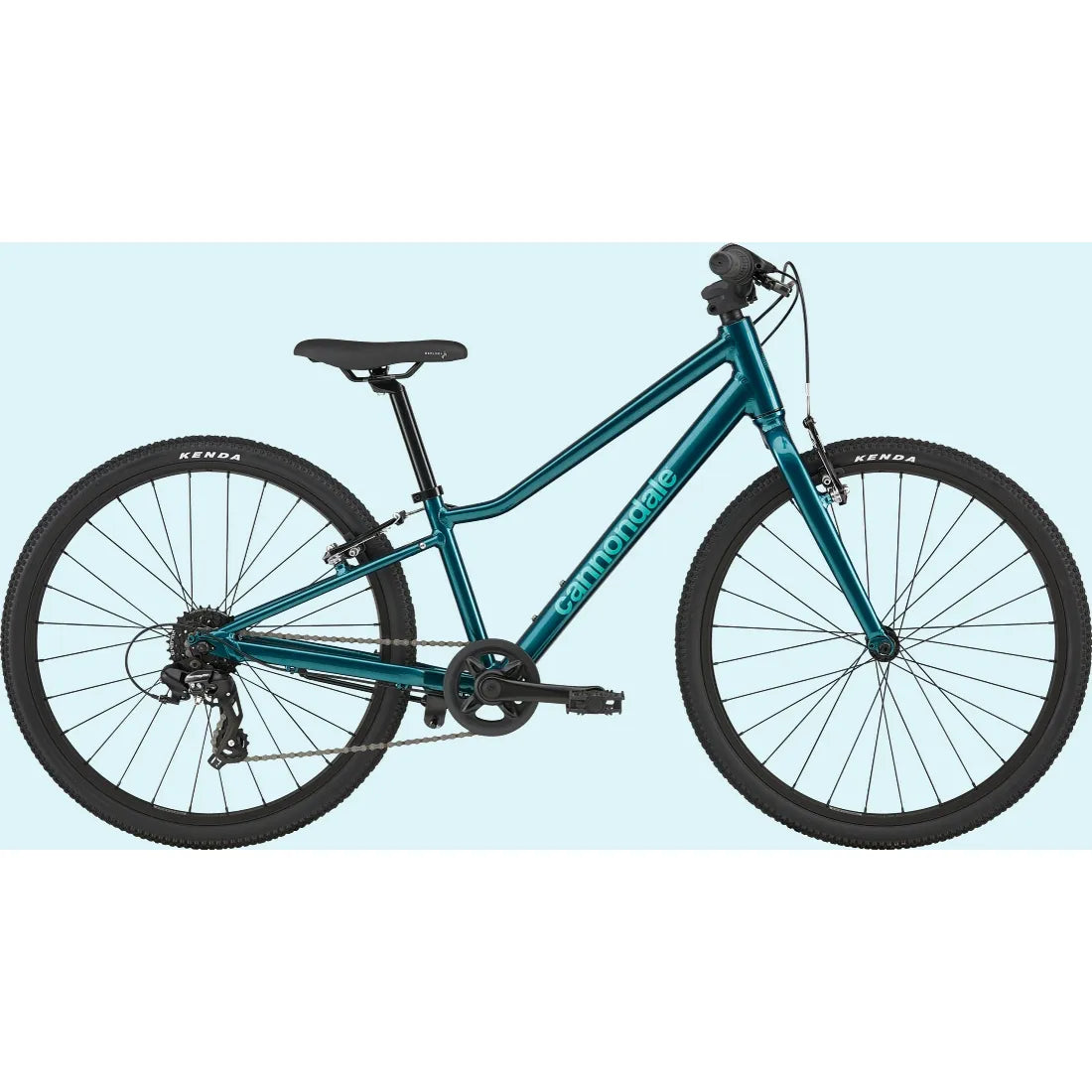

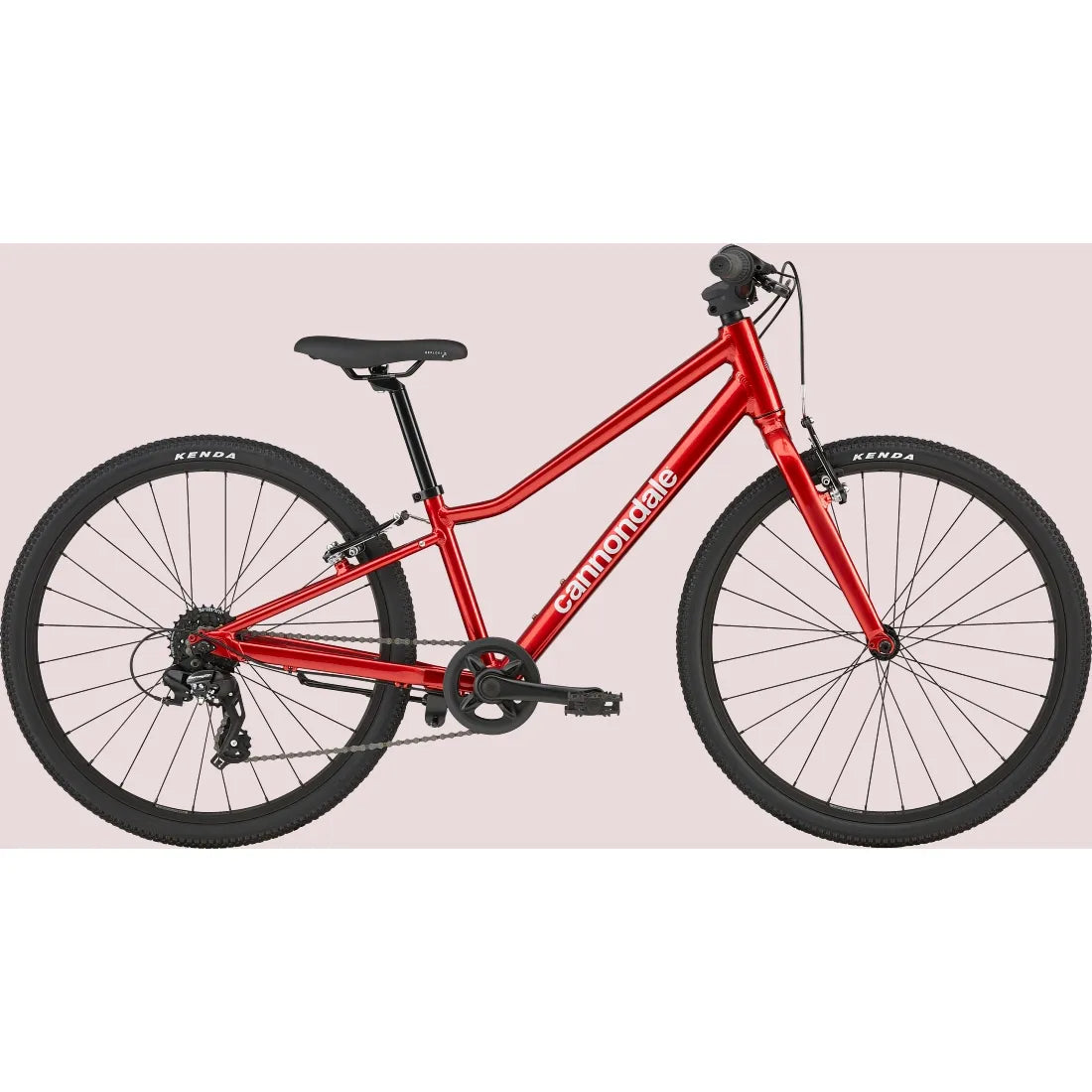

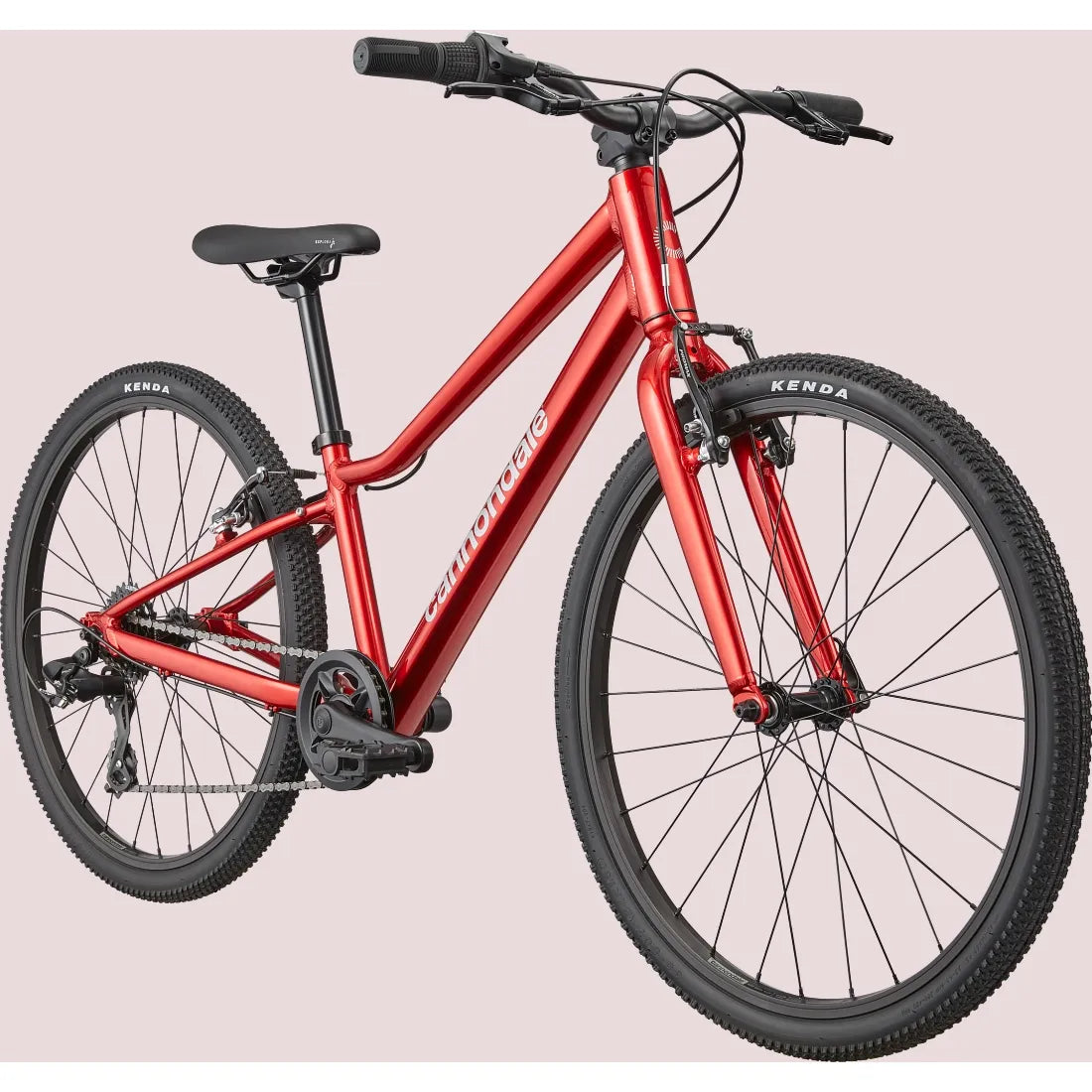

Model Name: Kids Quick 24
Model Code: C5301GU

FRAMESET
Frame: SmartForm C3 Alloy, rim brakes, rack/fender mounts

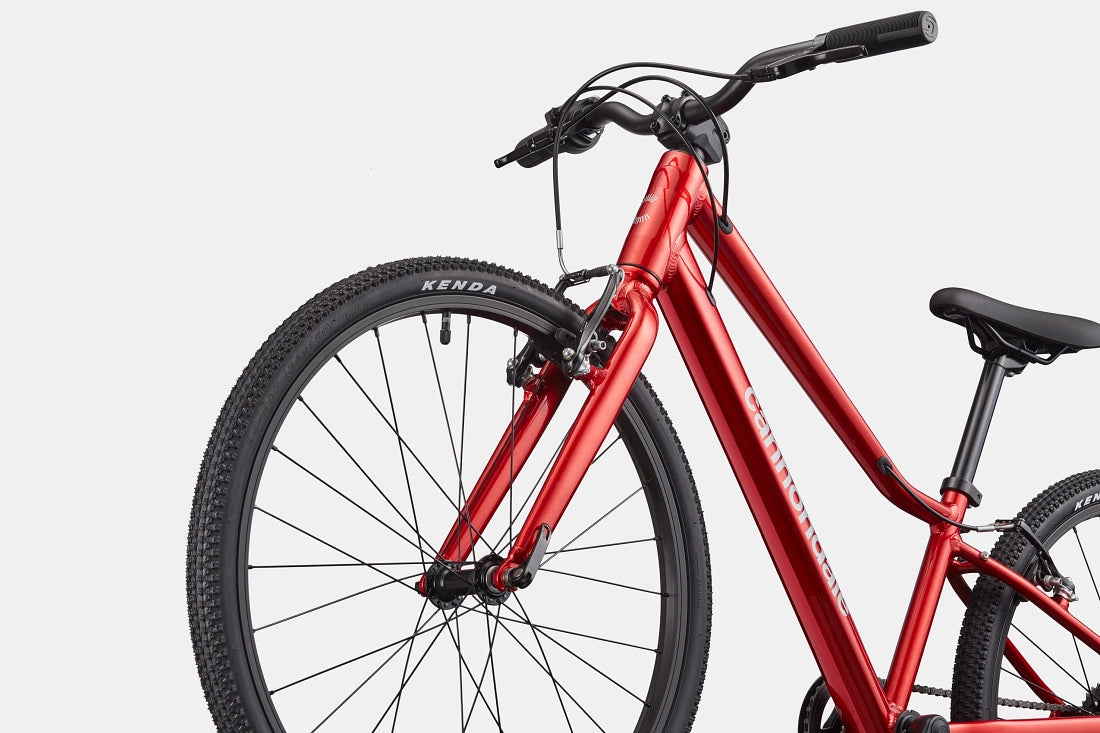

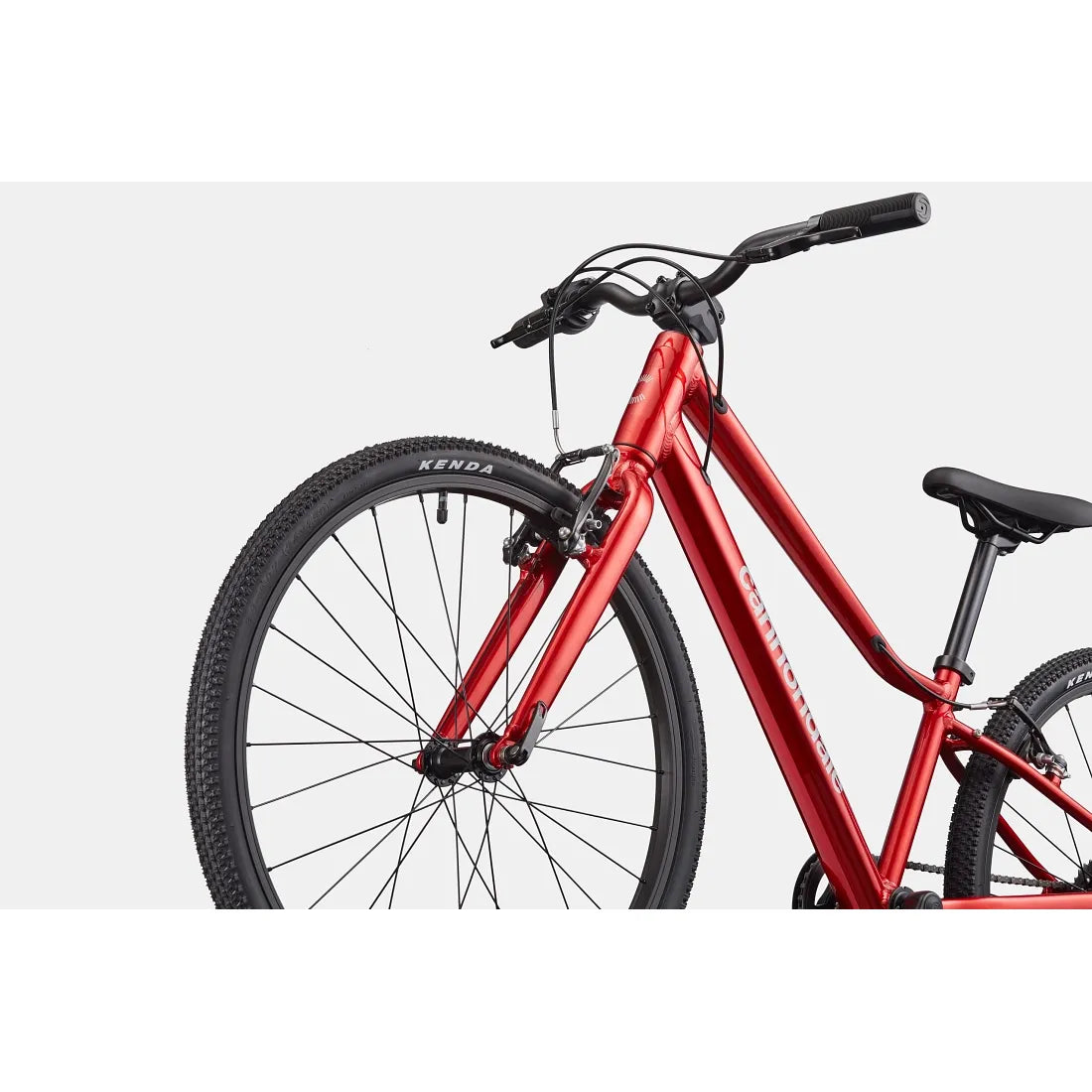

Fork: Rigid, SmartForm C3 Alloy, 1-1/8" steerer, fender mounts
Headset: FSA Alloy, 1-1/8" Ahead, semi-integrated

DRIVETRAIN

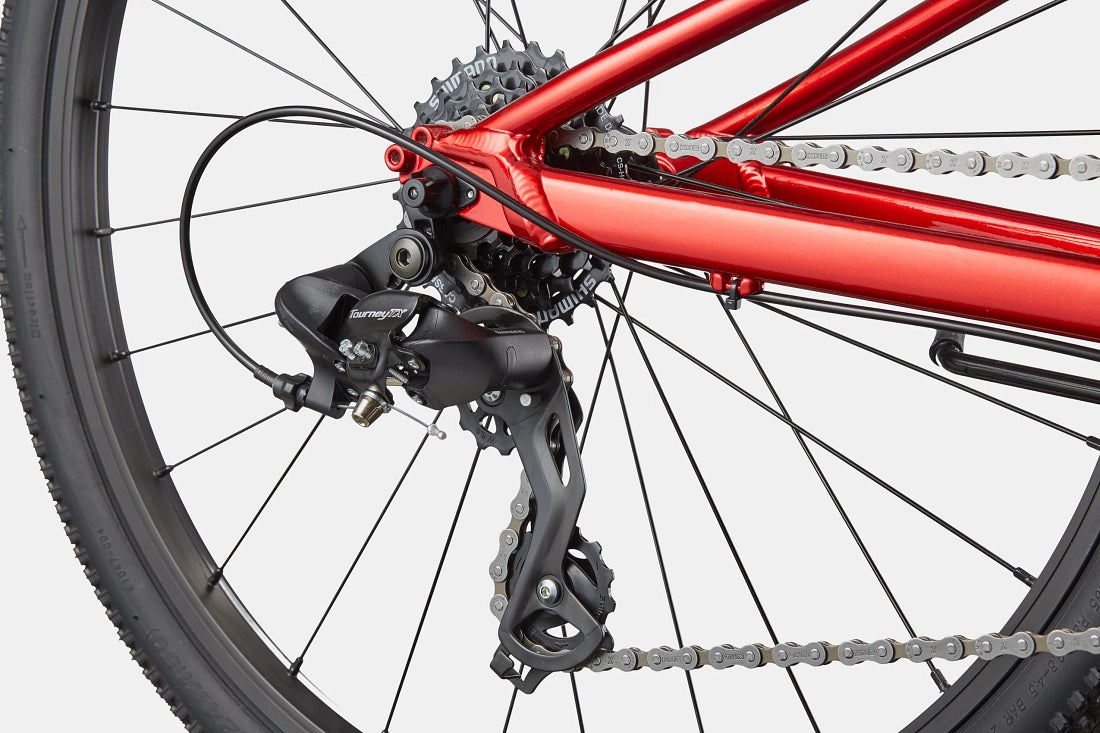

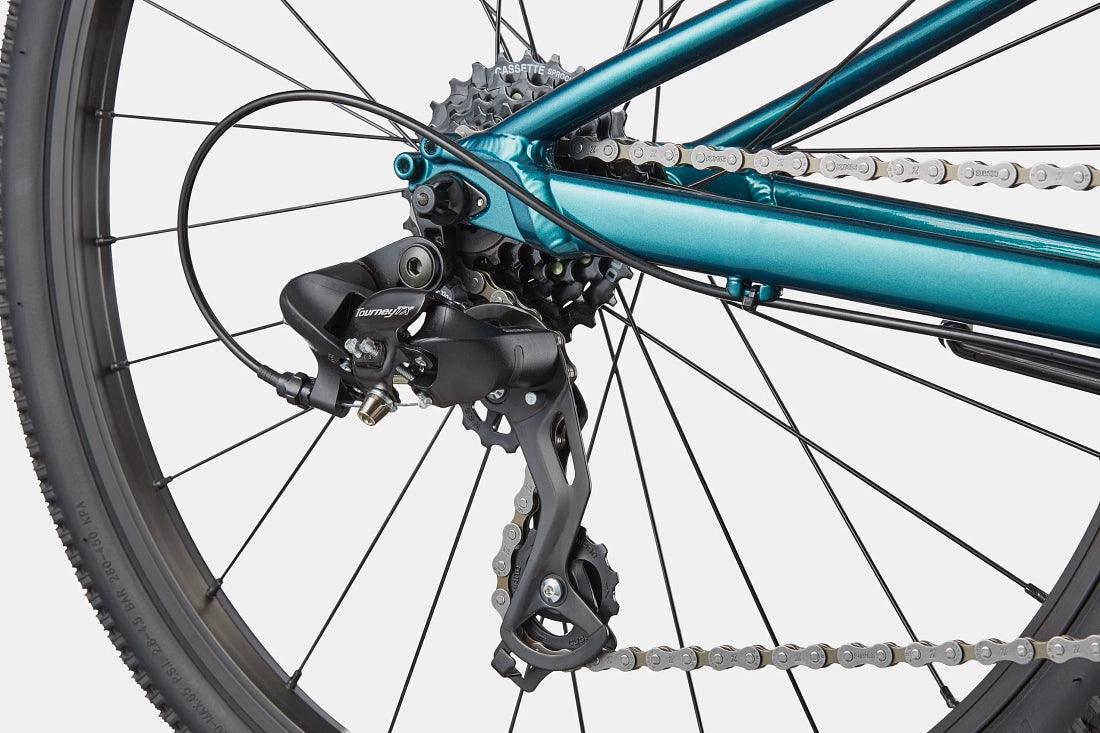

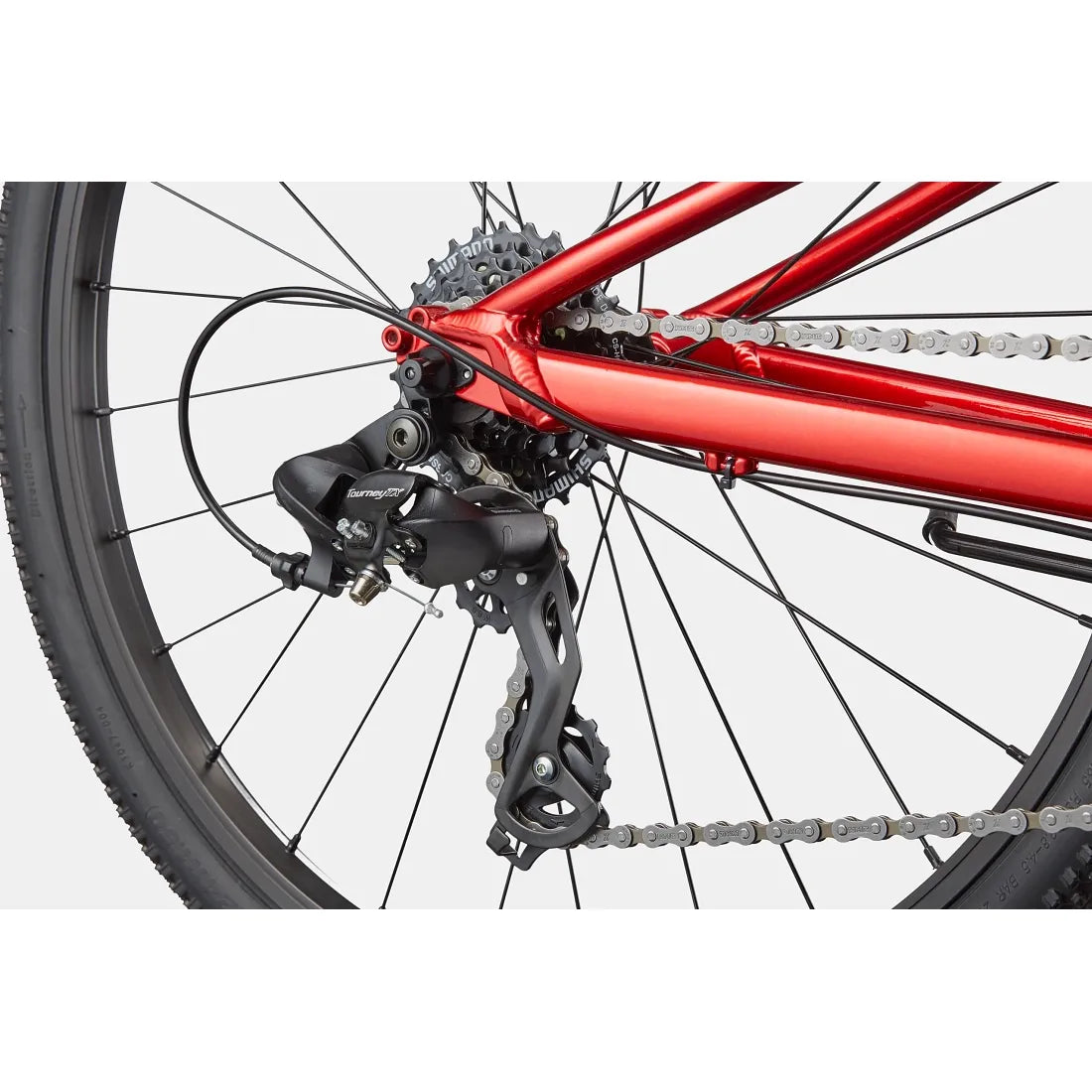

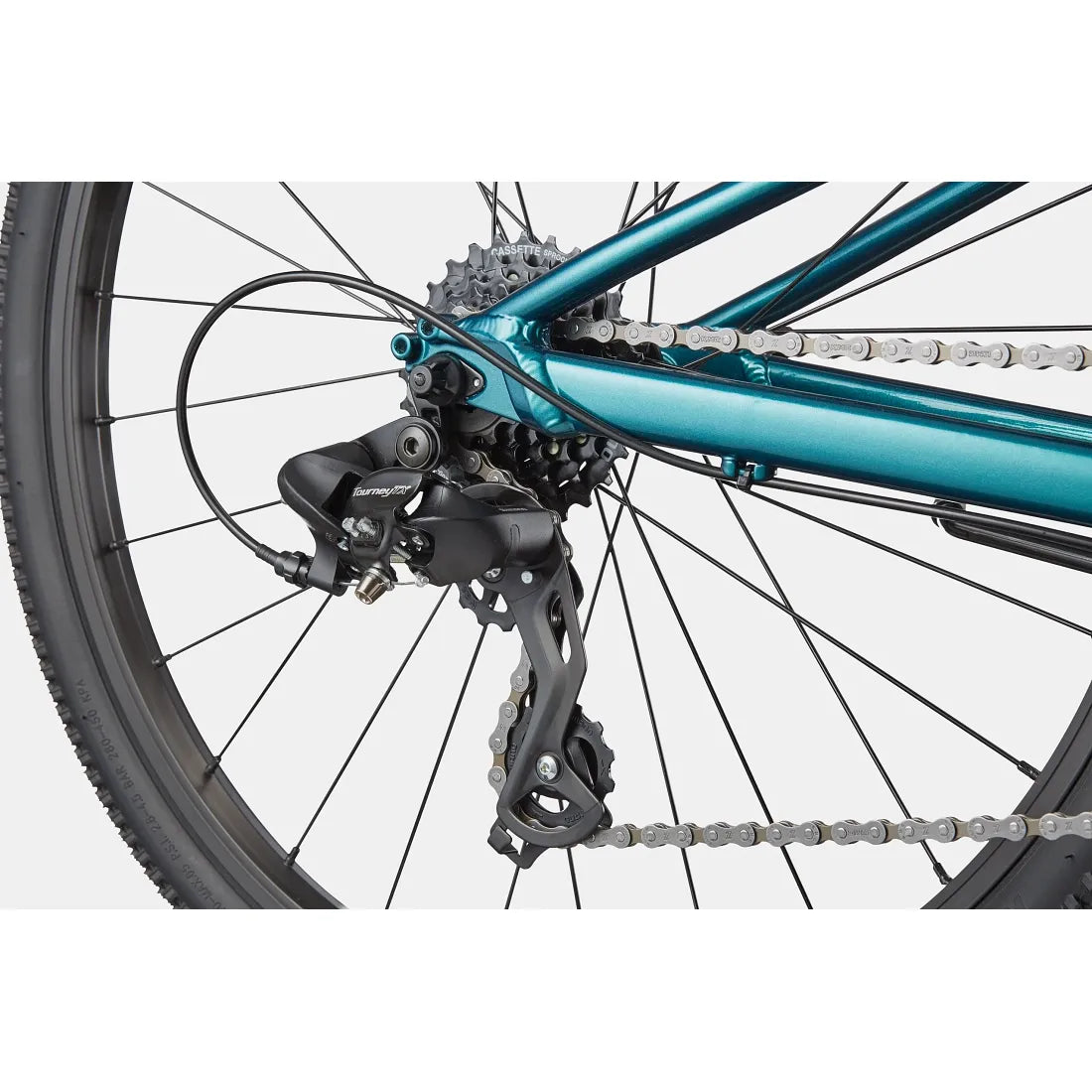

Rear Derailleur: Shimano TX, 7-speed
Shifters: microSHIFT low-torque Twist Shift, 7-speed
Chain: KMC Z7, 7-speed
Crank: Prowheel Pro-V30, 145mm, 30T
Rear Cogs: Shimano HG200, 12-28, 7-speed
Bottom Bracket: Cartridge, square taper

BRAKES
Brakes: Promax V-Brake
Brake Levers: Alloy, linear pull

WHEELS
Rims: Cannondale lightweight alloy, 24", 28h
Spokes: Steel, 14g Black
Tire Size: 1.5
Wheel Size: 24
Hubs: Front: KT Alloy QR / Rear: KT Alloy 7-speed freehub
Tires: Kenda Small Block 8, 24x1.5"

COMPONENTS

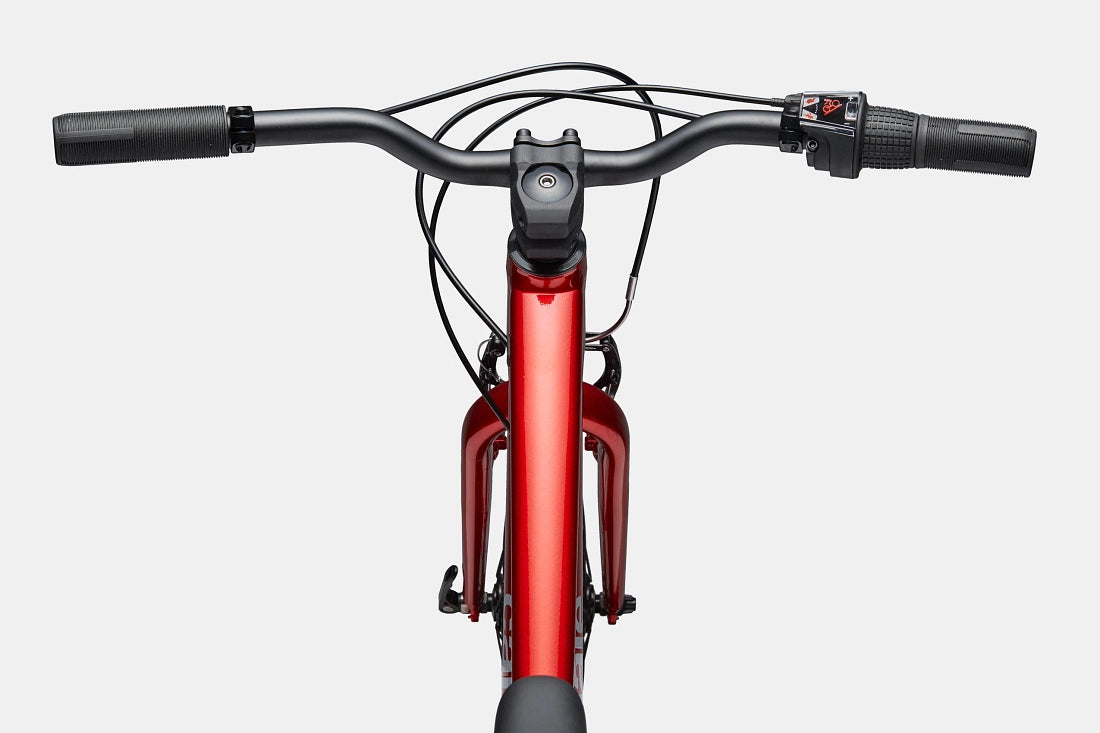

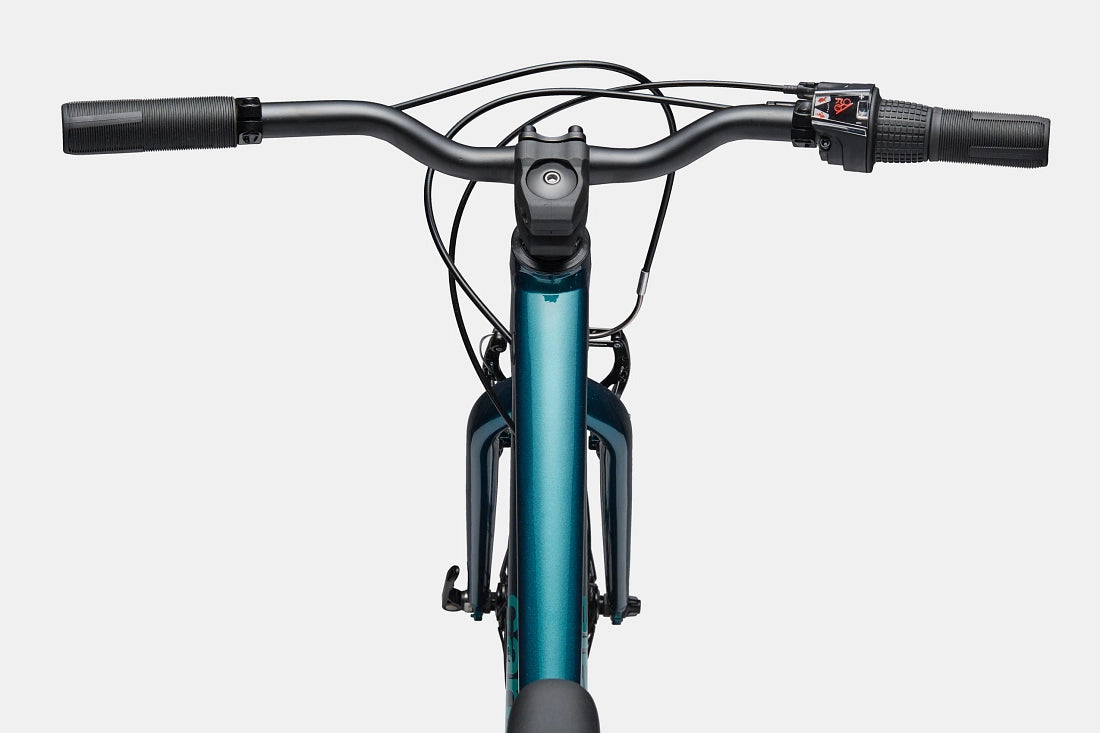

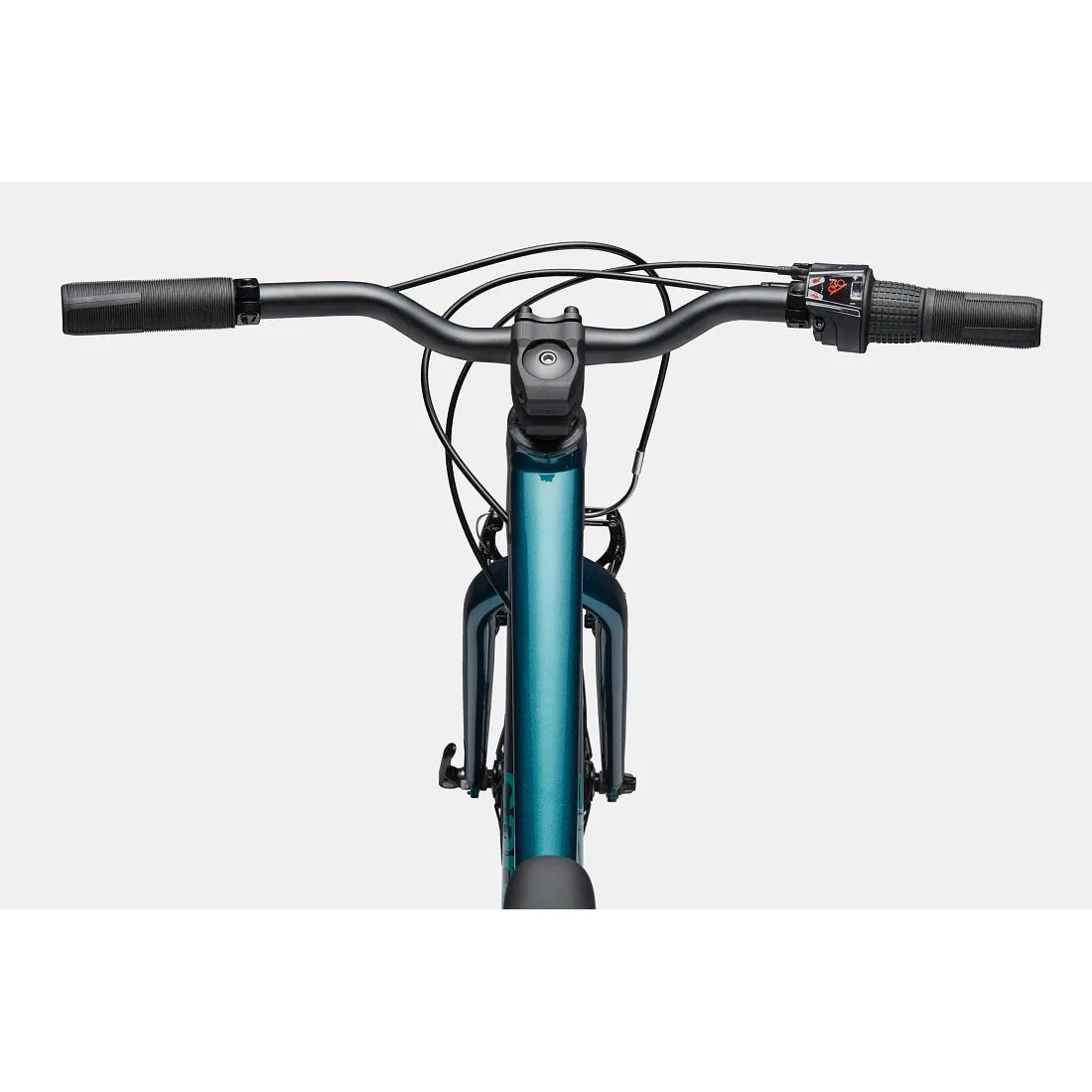

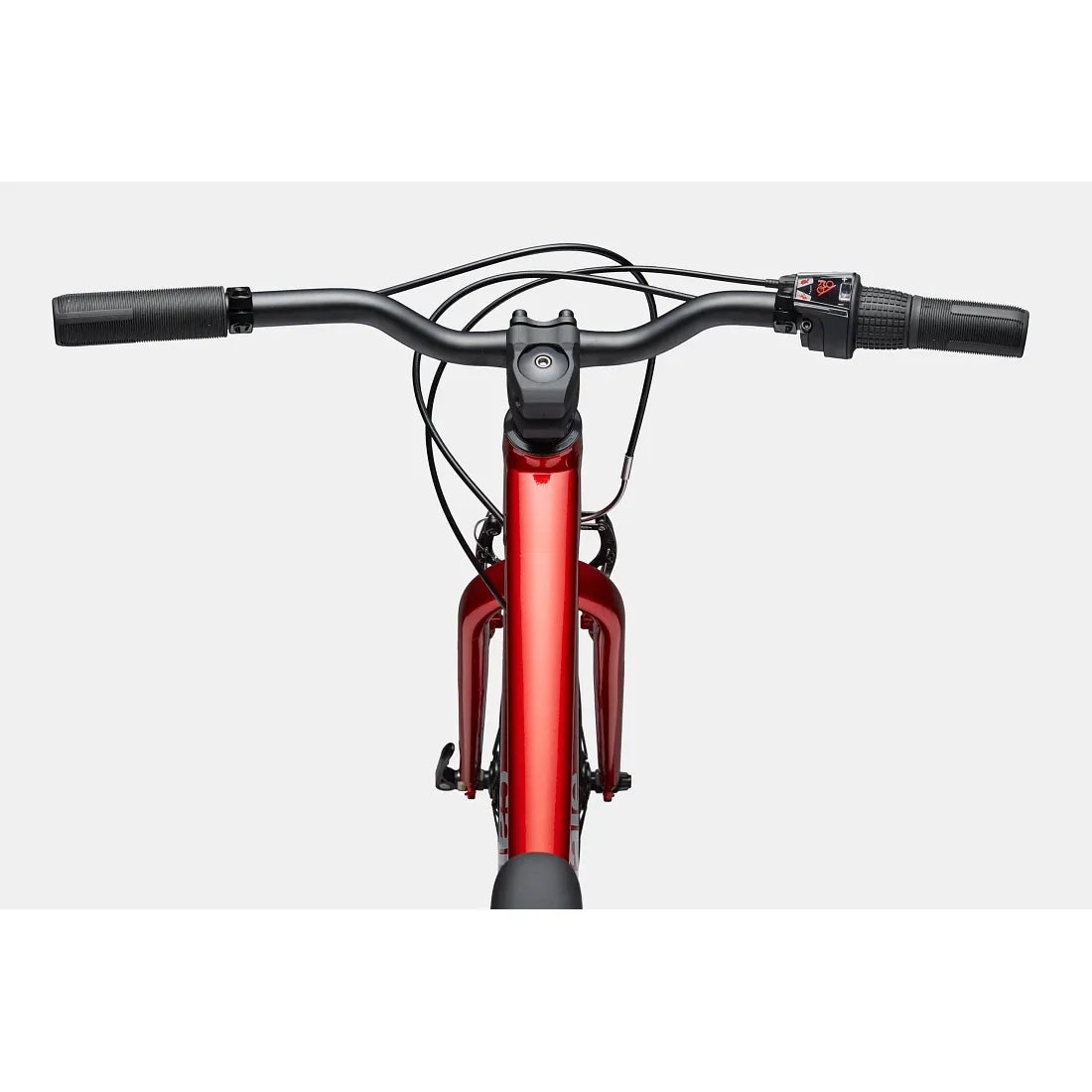

Handlebar: Lightweight Alloy, 25.4mm, 580mm
Stem: Forged/machined aluminum, 30mm with fitted stem cover
Grips: Cannondale Kid's Comfort
Saddle: Cannondale Kid's Comfort
Seatpost: One-piece, clamp-less Alloy, 25.4mm

EXTRA
Kickstand included
