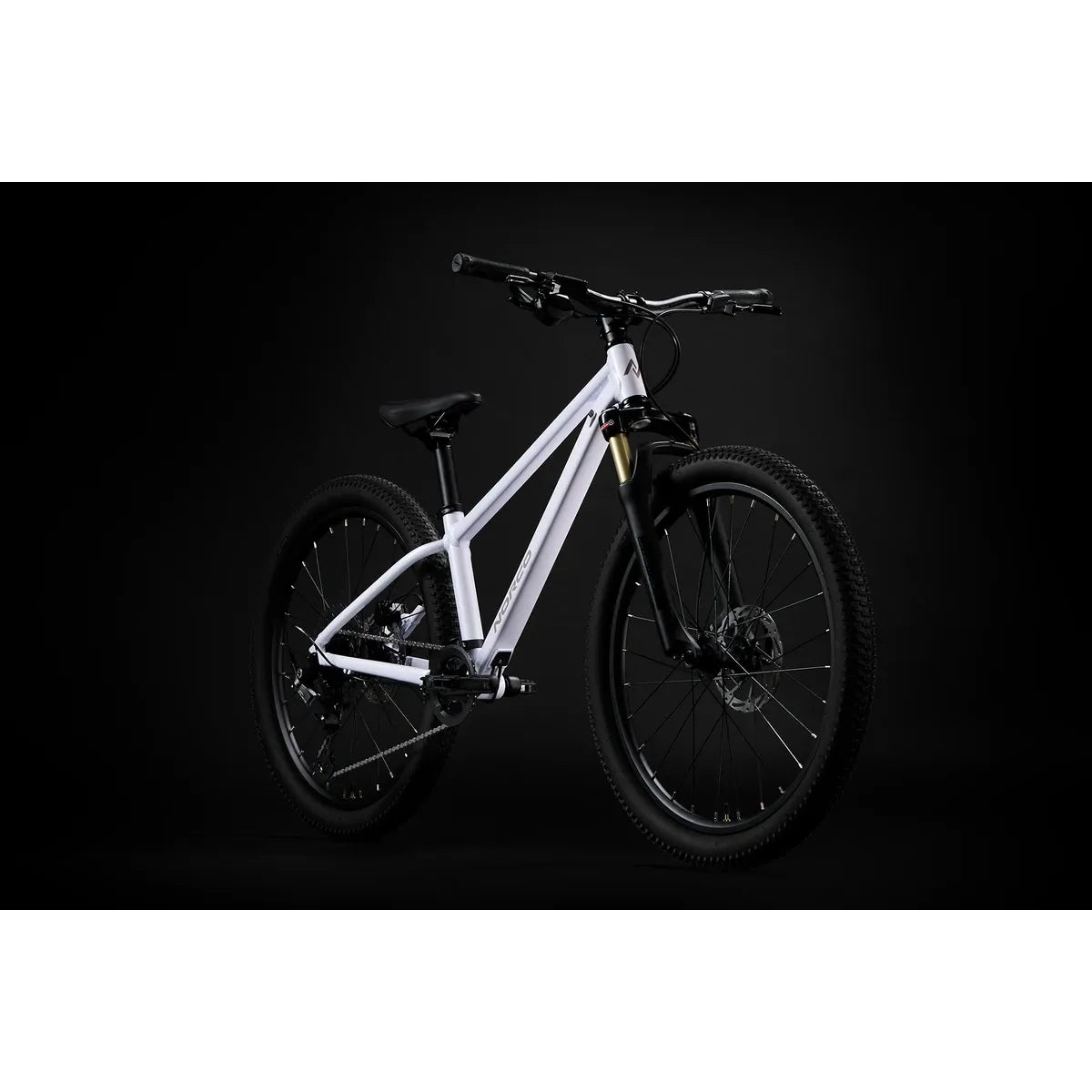

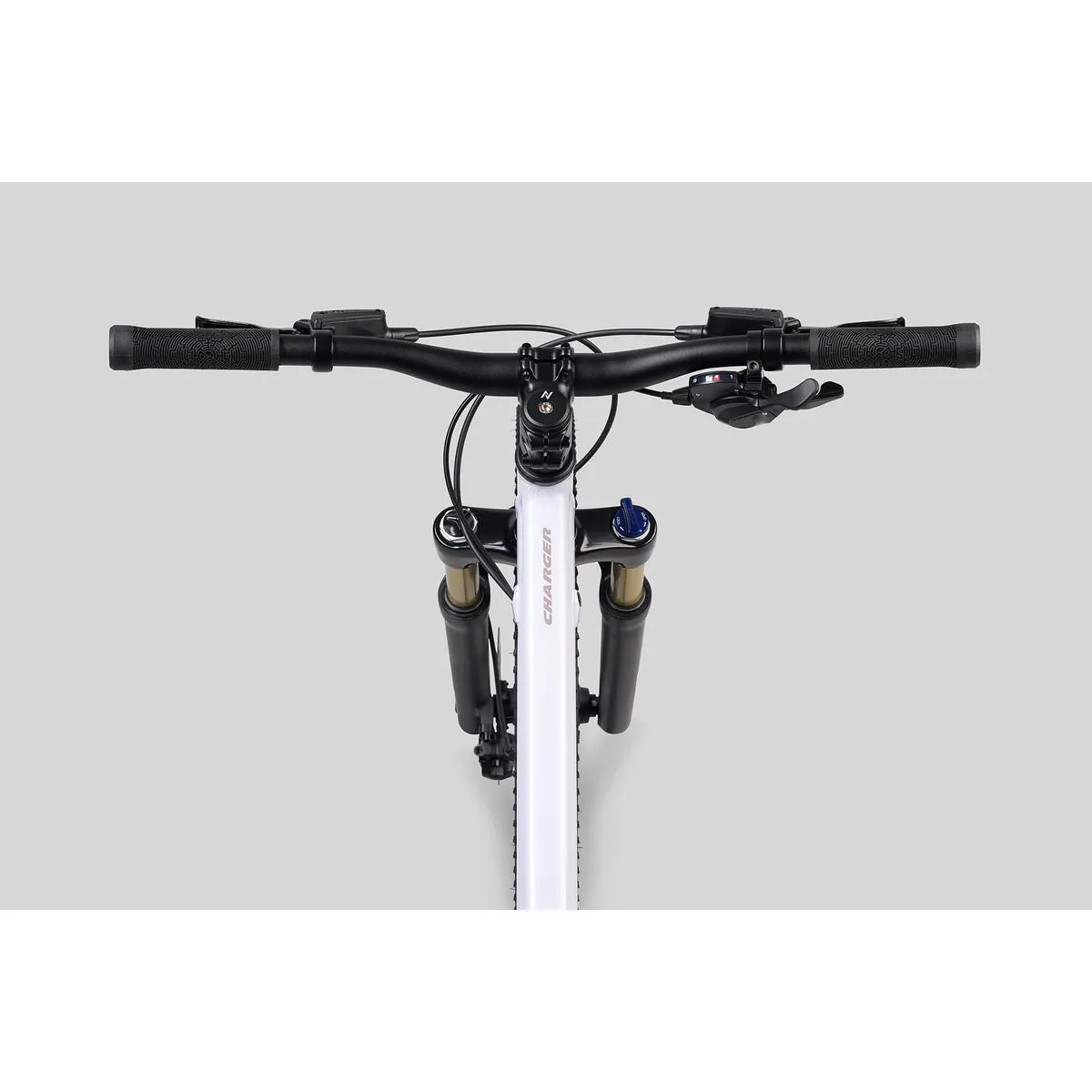

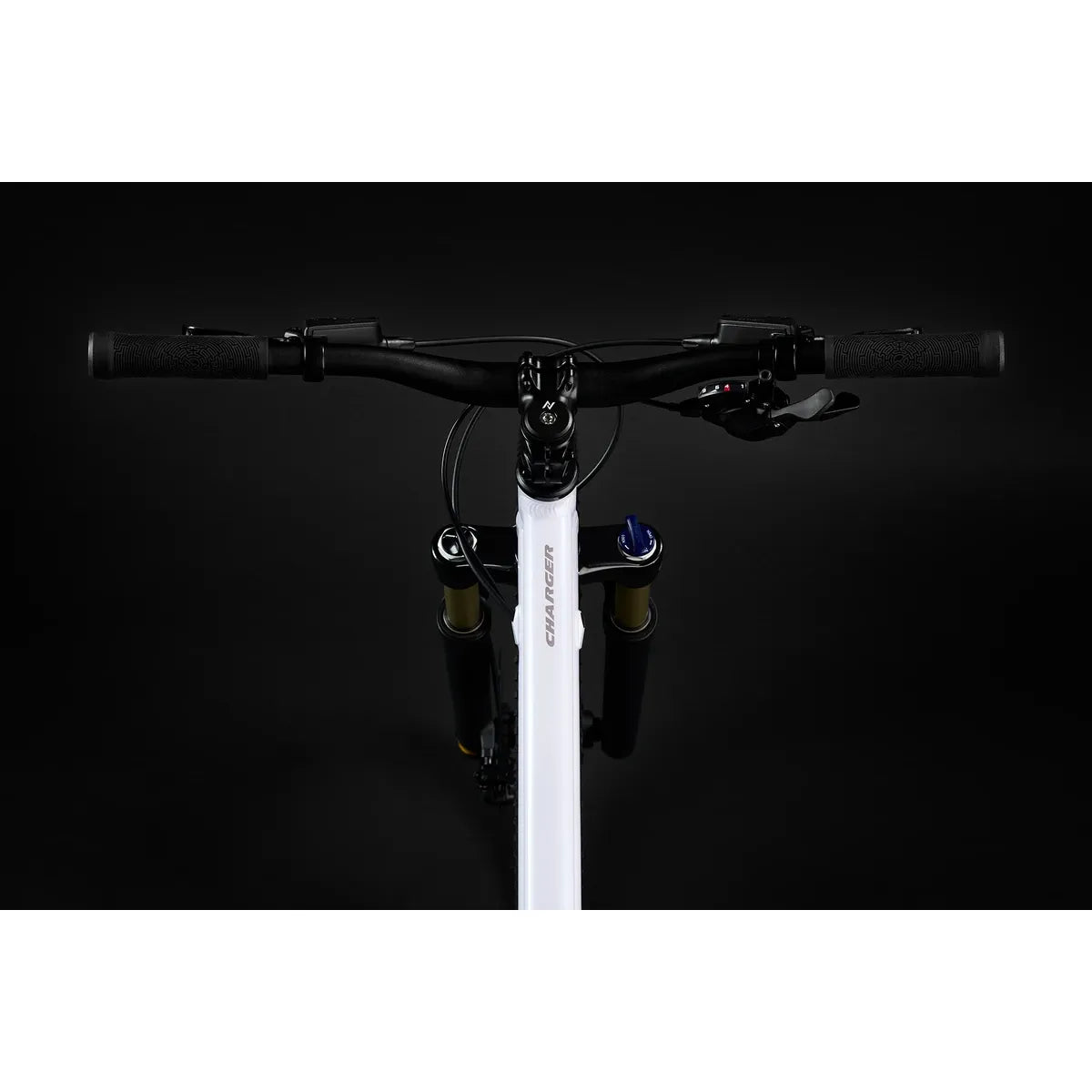

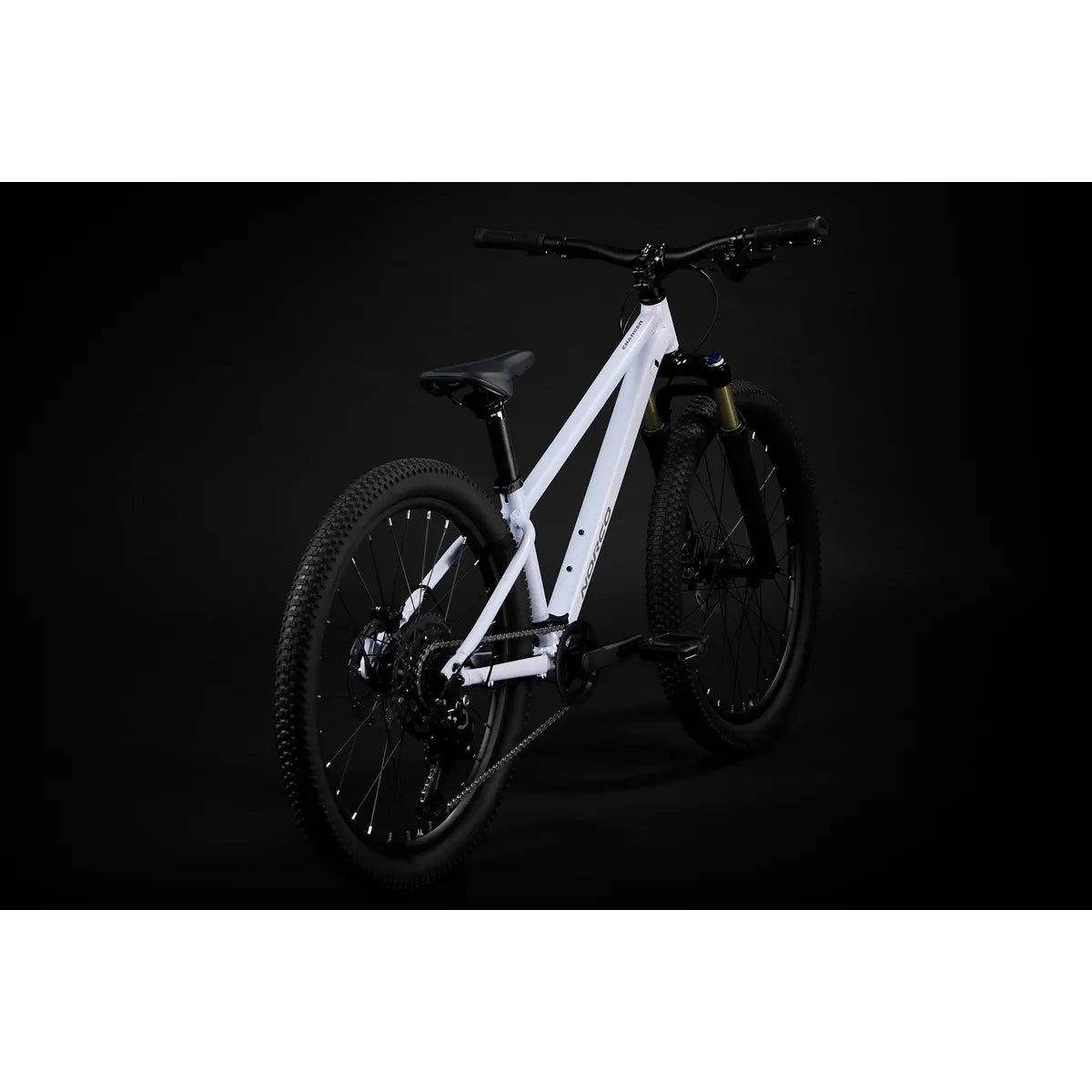

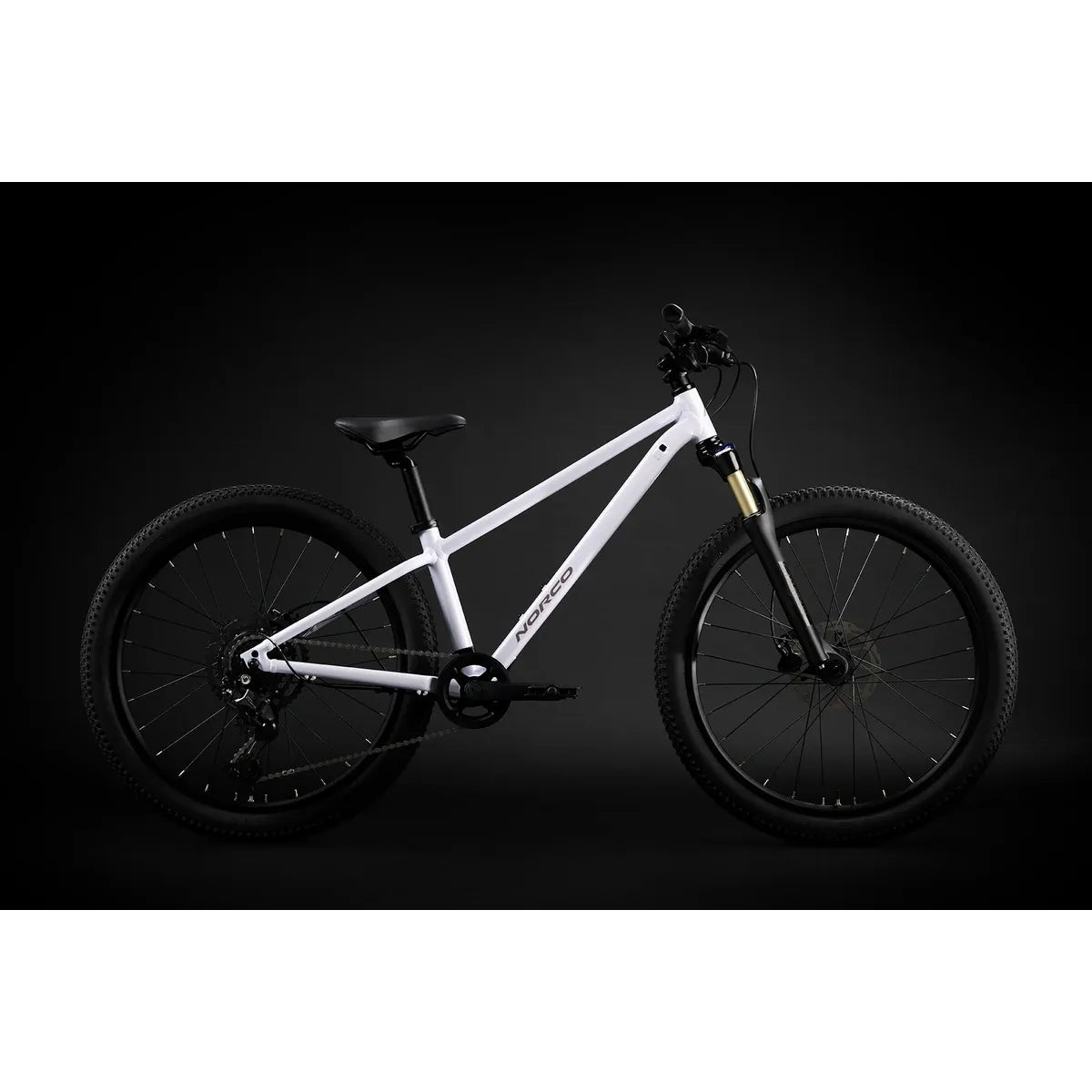

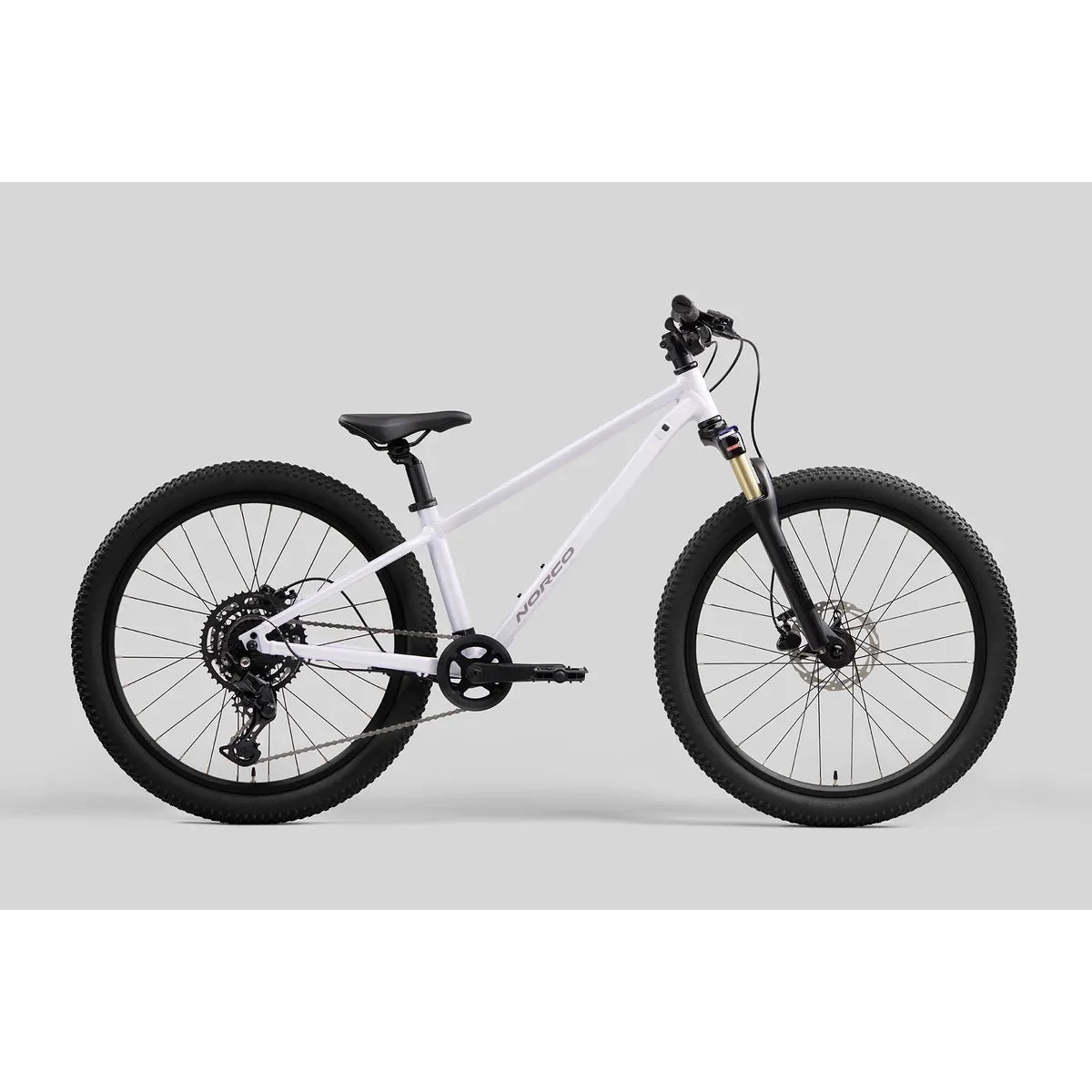

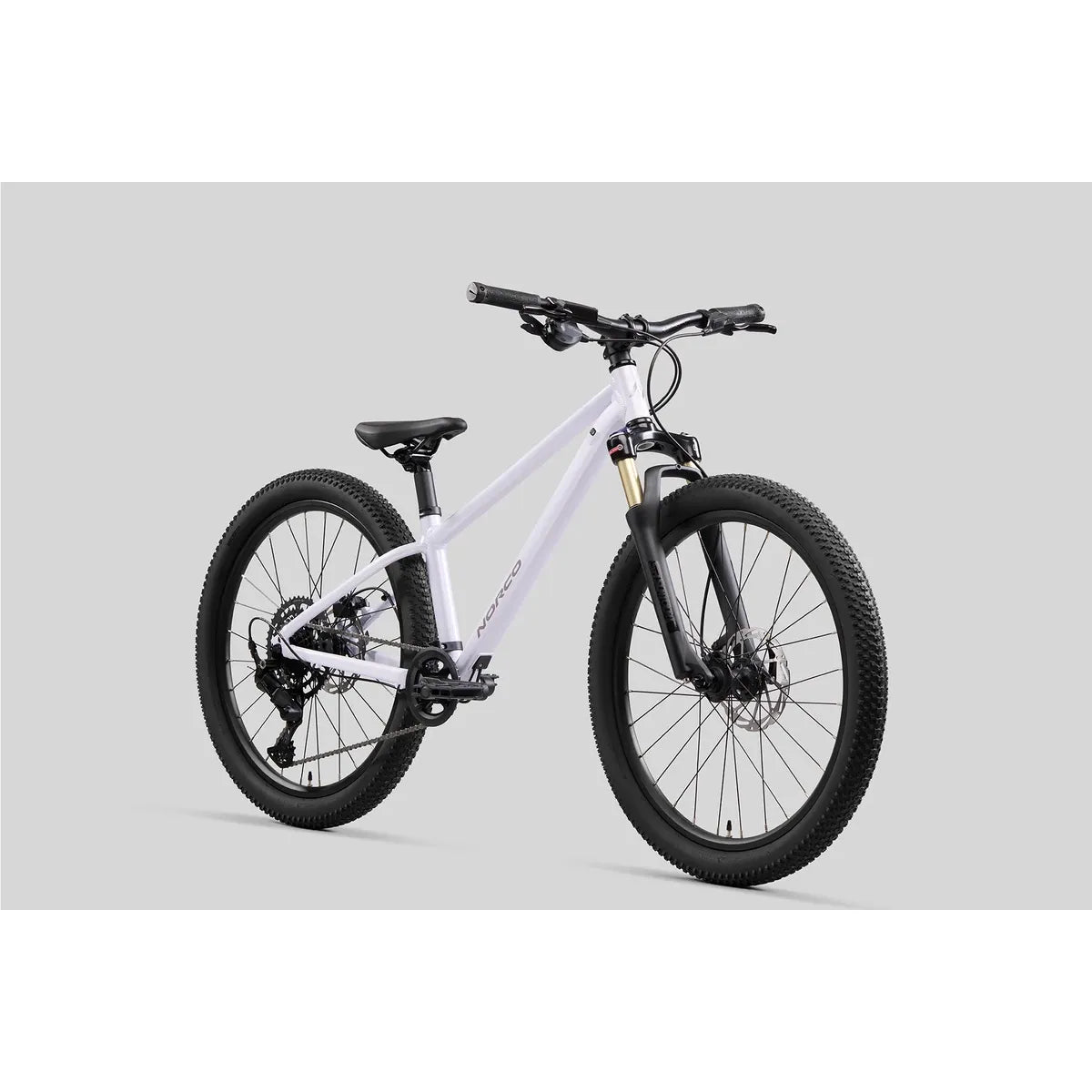

Charger Youth 24

Frameset
Frame: Aluminum, 9x135mm QR, 24"
Fork: SR Suntour XCT Air NLO, 70mm, 9x110 QR

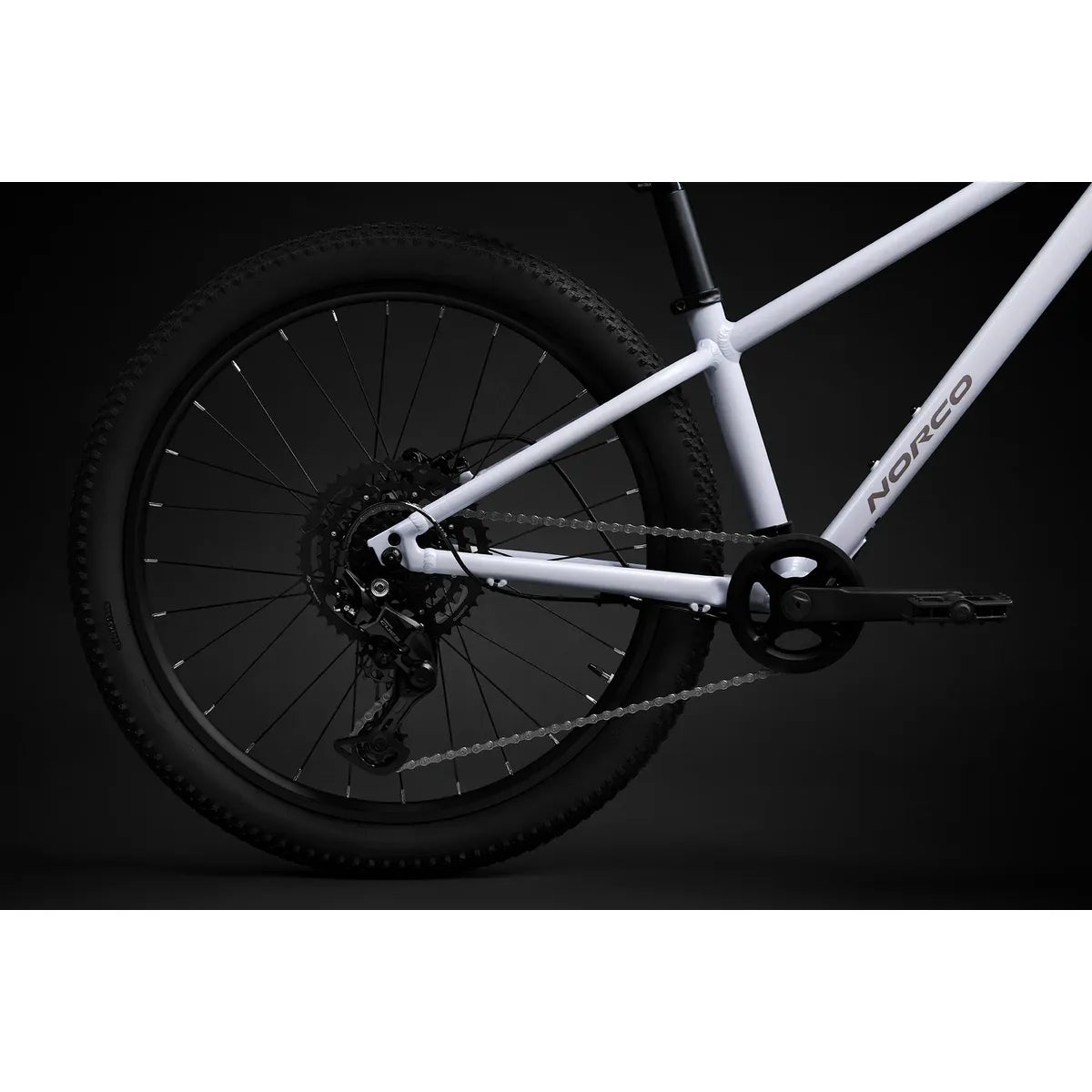

Drivetrain
Rear Shifter: Shimano Cues SL-U4000, 9sp
Rear Derailleur: Shimano Cues RD-U4000, 9sp, GS
Crankset: Alloy 3pc, 152mm, 28T Narrow Wide
Bottom Bracket: Sealed bearing, ST 68mm
Cassette: Shimano Cues CS-LG300-9, 11-46T, 9sp
Chain: KMC Z9

Brakes
Front Brake: Tektro HD-M286, Resin Pads
Front Brake Rotor: Tektro 160mm rotor, 6-bolt
Rear Brake: Tektro HD-M286, Resin Pads
Rear Brake Rotor: Tektro 160mm rotor, 6-bolt
Brake Levers: Tektro HD-M286, Hydraulic 2-Finger Jr. Levers

Components
Handlebar: Alloy Jr. Riser, 600mm, 30mm Rise
Stem: Alloy 40mm Length, 31.8mm Clamp
Seatpost: Norco Alloy 27.2mm, 250mm Length
Headset: External Cup Ball Bearing, 1-1/8" EC34
Headset Spacer: 1x10mm, 2x5mm
Saddle: Norco Jr XC, Steel Rail
Grips: Norco Youth, 115mm Length
Pedals: Jr. MTB Flat, 9/16"
Seatpost Clamp: Norco Alloy Bolted, 34.9mm ID

Wheels
Front Hub: Formula DC-1420, 9x110mm QR, 28H, 6-bolt
Rear Hub: Formula DC-1425, 10x135mm QR, HG, 28H, 6-bolt
Rims: Aluminum DW, 28H, 24" MTB
Front Tire: CY Trail, 24x2.25", Wire
Rear Tire: CY Trail, 24x2.25", Wire
Spokes/Nipples: Stainless Steel w/ Brass Nipples

Weight
Weight: 12.04 kg (26.5 lbs)
