Get everything out of the trail that you put into it.
The Fluid FS A1's 130mm travel is precision engineered, pairing custom tuned suspension components with 140mm fork travel and boutique level fit & finish for maximum Trail performance & potential.
Frame & Suspension
Frame: 6061 Alloy, 130mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
Fork: DVO Diamond D3, 140mm Travel, 44mm Offset
Rear Shock: RockShox Super Deluxe Select+, 210x50mm, Custom Tune
Drivetrain
Rear Shifter: SRAM NX Eagle MMX
Rear Derailleur: SRAM NX Eagle
Crankset: SRAM SX Eagle DUB, 30T, 170mm (S), 175mm (M–XXL)
Bottom Bracket: SRAM DUB BSA Threaded
Cassette: SRAM PG1210 Eagle, 11–50T
Chain: SRAM SX Eagle
Brakes
Front Brake: TRP Trail EVO, 4 Piston, Organic Pads
Front Rotor: TRP TR203-29, 203mm
Rear Brake: TRP Trail EVO, 4 Piston, Organic Pads
Rear Rotor: TRP TR180-29, 180mm
Brake Levers: TRP Trail EVO
Components
Handlebar: 6061 Butted Alloy, 800mm, 25mm Rise
Stem: 6061 Alloy, 40mm Length, 35mm Clamp
Seatpost: TranzX YSI34 Dropper, 34.9mm — 150mm (S), 170mm (M), 200mm (L, XL, XXL)
Headset: Sealed Bearing, Tapered
Headset Spacers: 2x10mm & 1x5mm — Black
Saddle: SDG Bel Air V3 Lux Alloy
Grips: WTB Wavelength
Pedals: VP Nylon Flat
Seatpost Clamp: Norco Alloy Nutted Clamp
Wheels & Tires
Front Hub: Bear Pawls Sealed Bearing, 15x110mm Boost, 6-Bolt
Rear Hub: Bear Pawls Sealed Bearing, 12x148mm Boost, Micro Spline, 6-Bolt
Rims: WTB ST Light, 29", 32H
Front Tire: Continental Kryptotal Trail 2.4", Folding
Rear Tire: Continental Xynotal Trail 2.4", Folding
Spokes / Nipples: Stainless, Black
Weight
Weight: 16.2 kg (35.7 lbs)
Weight Size: Large

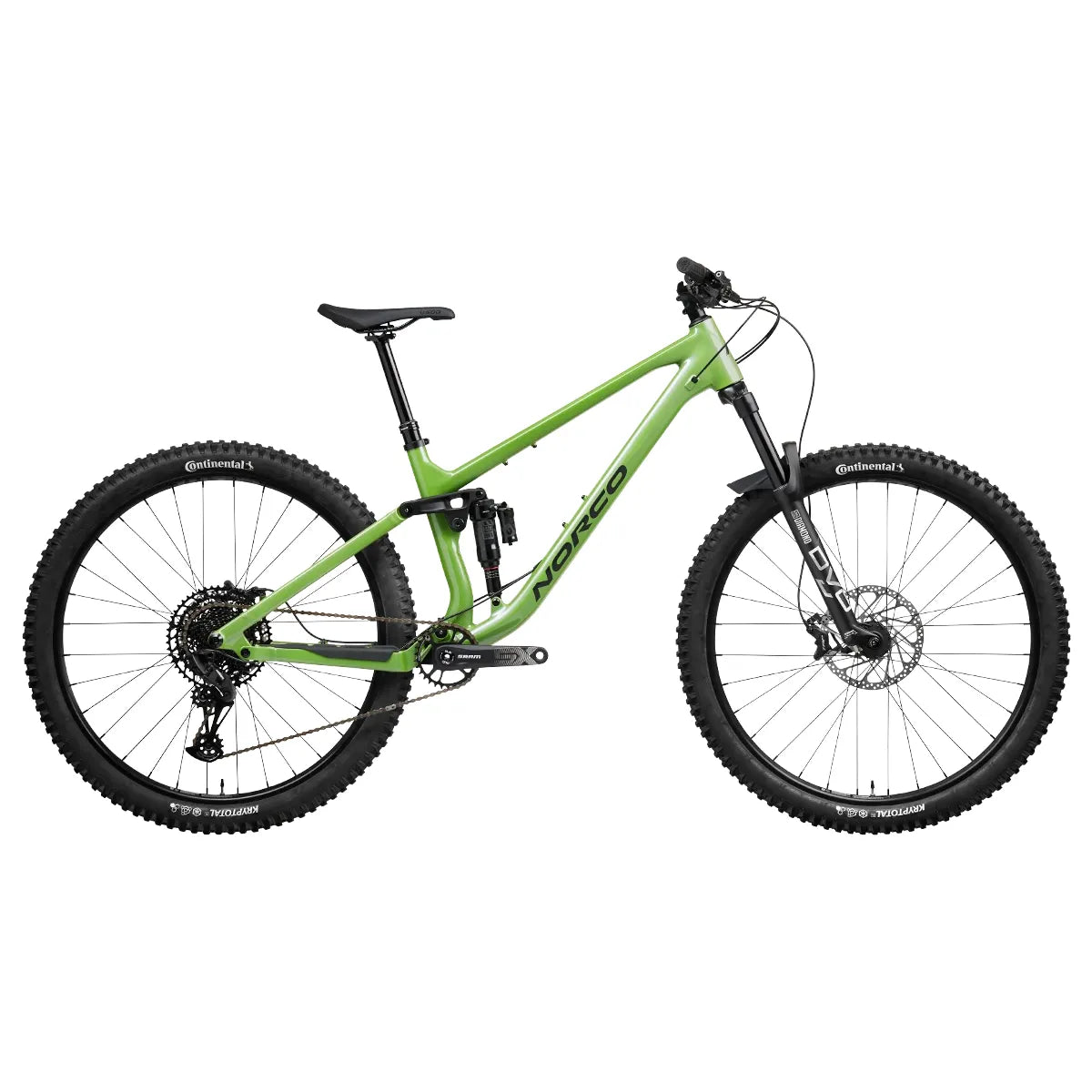

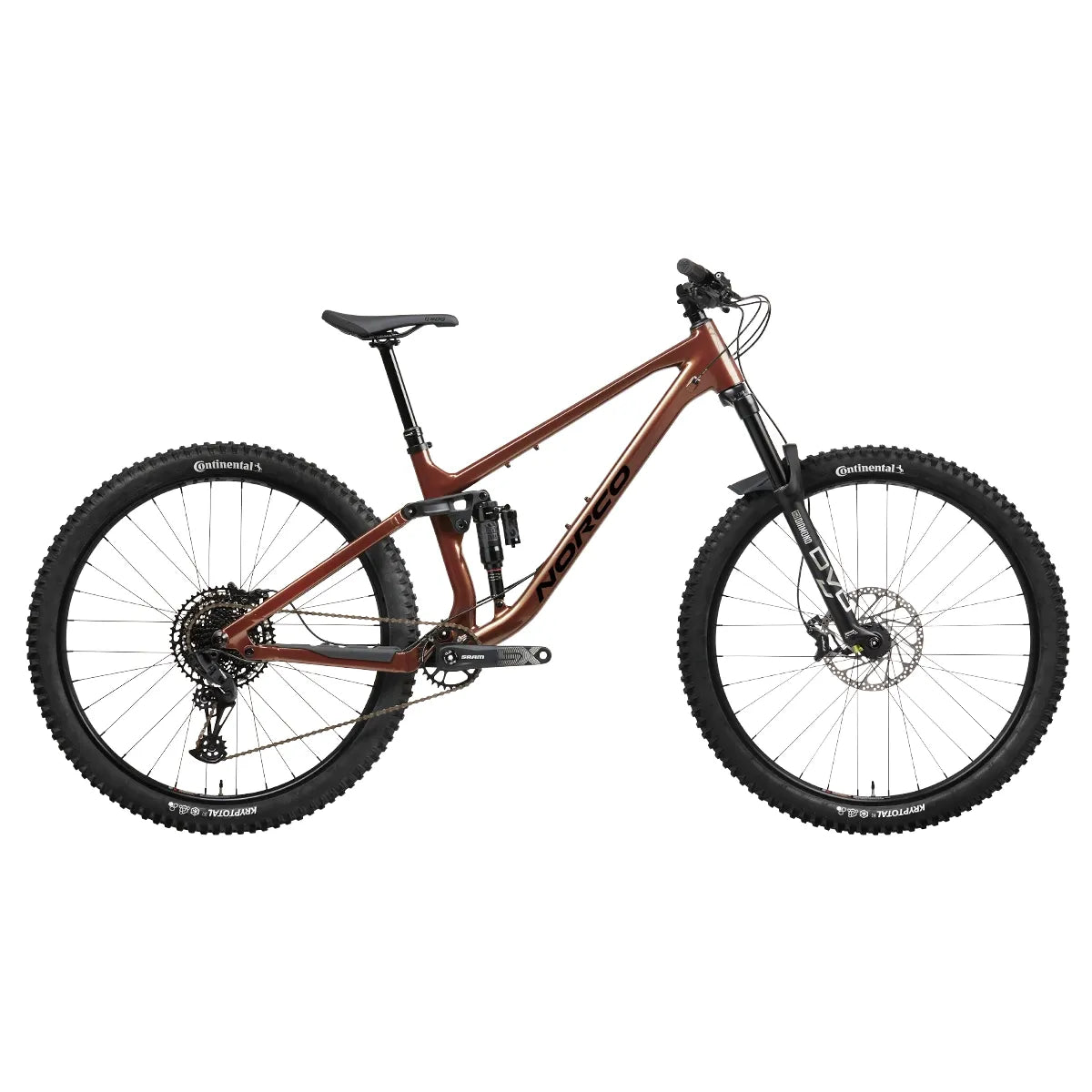

Note: Average of two bikes — Green 35.76 lbs, Brown 35.74 lbs
