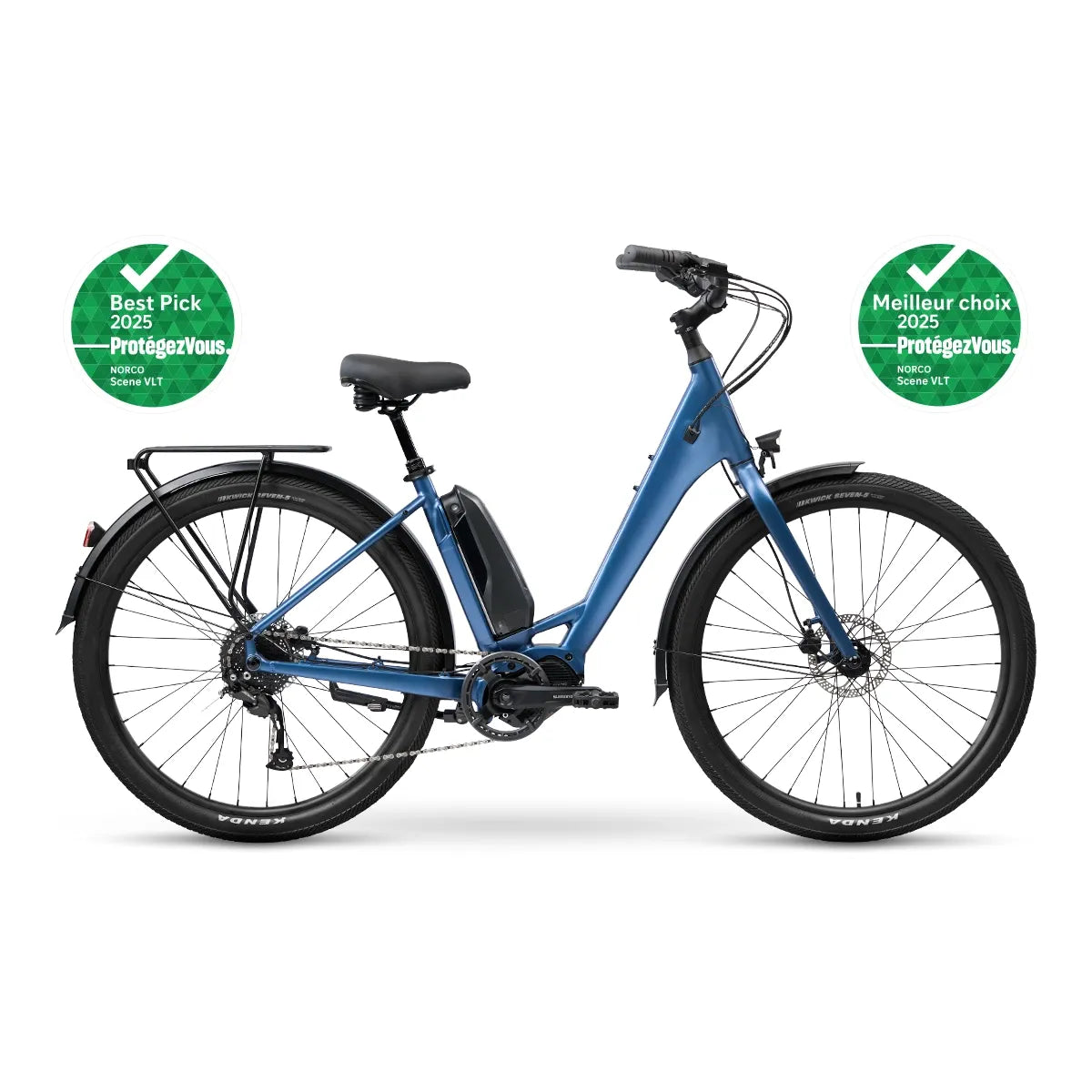

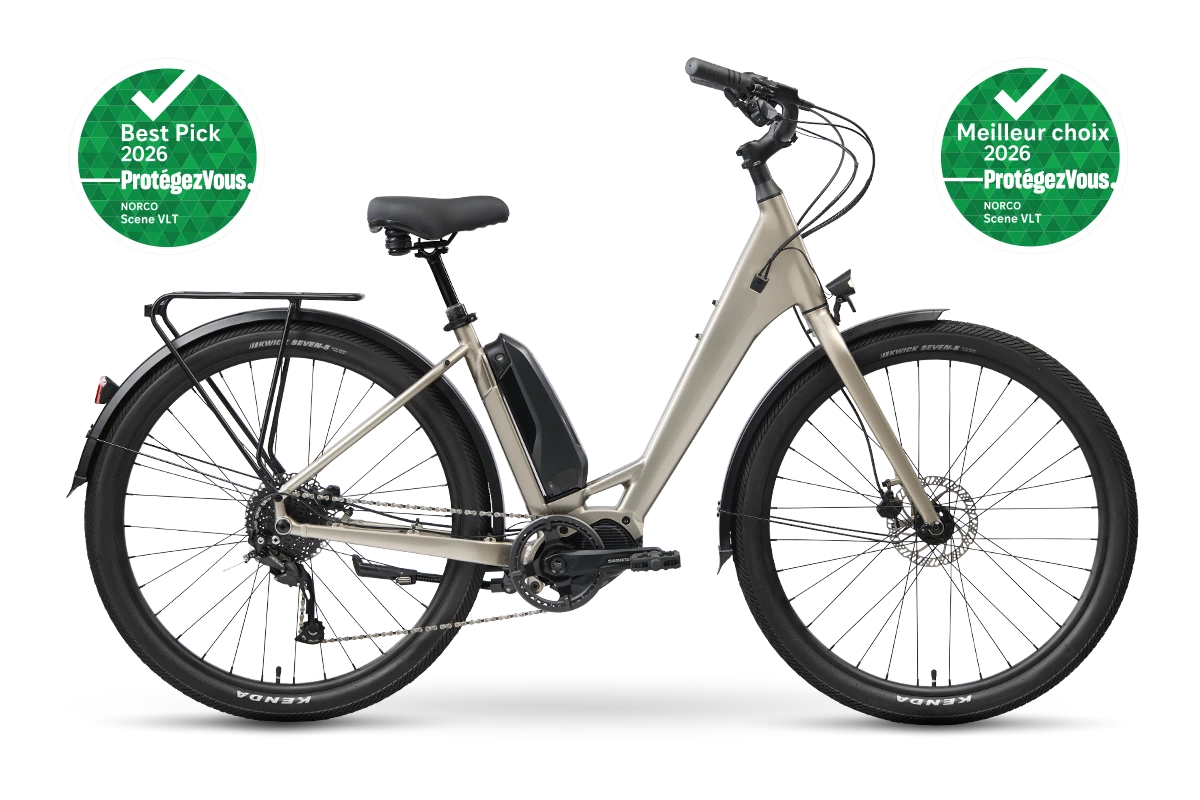

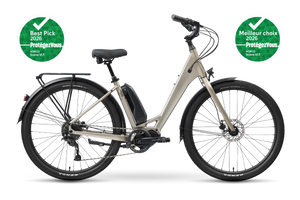

The Scene VLT is an award-winning, ultra-versatile electric hybrid designed for effortless city riding. With a flat bar and relaxed upright position, it’s a true car replacement for urban life. Powered by a Shimano STEPS motor and 504Wh battery, the Scene VLT flattens hills and extends your range—so every ride feels easy and comfortable.
FRAMESET
Frame: Double Butted Alloy E-Bike Frame, Internal Cable Routing
Fork: Aluminum w/ Light Mount, 12x100 Thru-Axle, PS
DRIVETRAIN
Rear Shifter: Shimano CUES SL-U4000-9R, 9-Speed
Rear Derailleur: Shimano CUES RD-U4020, SGS, 9-Speed
Crankset: Shimano FC-EM600, 38T, 165mm
Cassette: Shimano CUES CS-LG300-9, 11–36T, 9-Speed
Chain: KMC eGlide, 9-Speed
BRAKES
Front Brake: Tektro HD-M280 Auriga, 2-Piston, Resin Pads, Anti-Vibration
Front Rotor: Tektro TR160-52, 160mm, 1.8mm Thickness, 6-Bolt
Rear Brake: Tektro HD-M280 Auriga, 2-Piston, Resin Pads, Anti-Vibration
Rear Rotor: Tektro TR160-52, 160mm, 1.8mm Thickness, 6-Bolt
Brake Levers: Tektro HD-M280 Auriga
COMPONENTS
Handlebar: Norco Scene Aluminum, 660mm Width, 60mm Rise, 30° Backsweep
Stem: Norco Aluminum, 70mm (S/M) – 80mm (M/L), 17° Riser, 31.8 Clamp
Seatpost: TranzX YSP18PLQ, 31.6mm, 100mm
Headset: Tapered 1-1/8" – 1.5" (ZS44/28.6 | ZS56/40)
Saddle: Scene Comfort Saddle w/ Elastomer Suspension, 225mm W x 269mm L
Grips: Dual Density Ergonomic Single Lock, 133mm Length
Seatpost Clamp: Norco Alloy QR, 31.8mm ID
WHEELS
Front Hub: Formula DC-221T, 15x100mm Thru-Axle, 32h, 6-Bolt
Rear Hub: Formula DC-142, 12x142mm, HG, 32h, 6-Bolt
Rims: Alloy DW Disc, 27mm Internal Width, 32h
Front Tire: Kenda Kwick Seven5, 27.5 x 2.2", 30 TPI, Wire
Rear Tire: Kenda Kwick Seven5, 27.5 x 2.2", 30 TPI, Wire
Spokes / Nipples: 13G Stainless Steel w/ Brass Nipples, 2.0mm x 16mm, Black
ELECTRIC COMPONENTS
Drive Unit: Shimano DU-EP600, 85 Nm
Battery: Shimano BT-EN605, 504 Wh
External Charging Adaptor: Shimano EC-E6002, 1.8A
Display: Shimano SC-EN500, 22.2mm Clamp Band
ADDITIONAL INFO
Sensor: Shimano EW-SS300 Sensor
