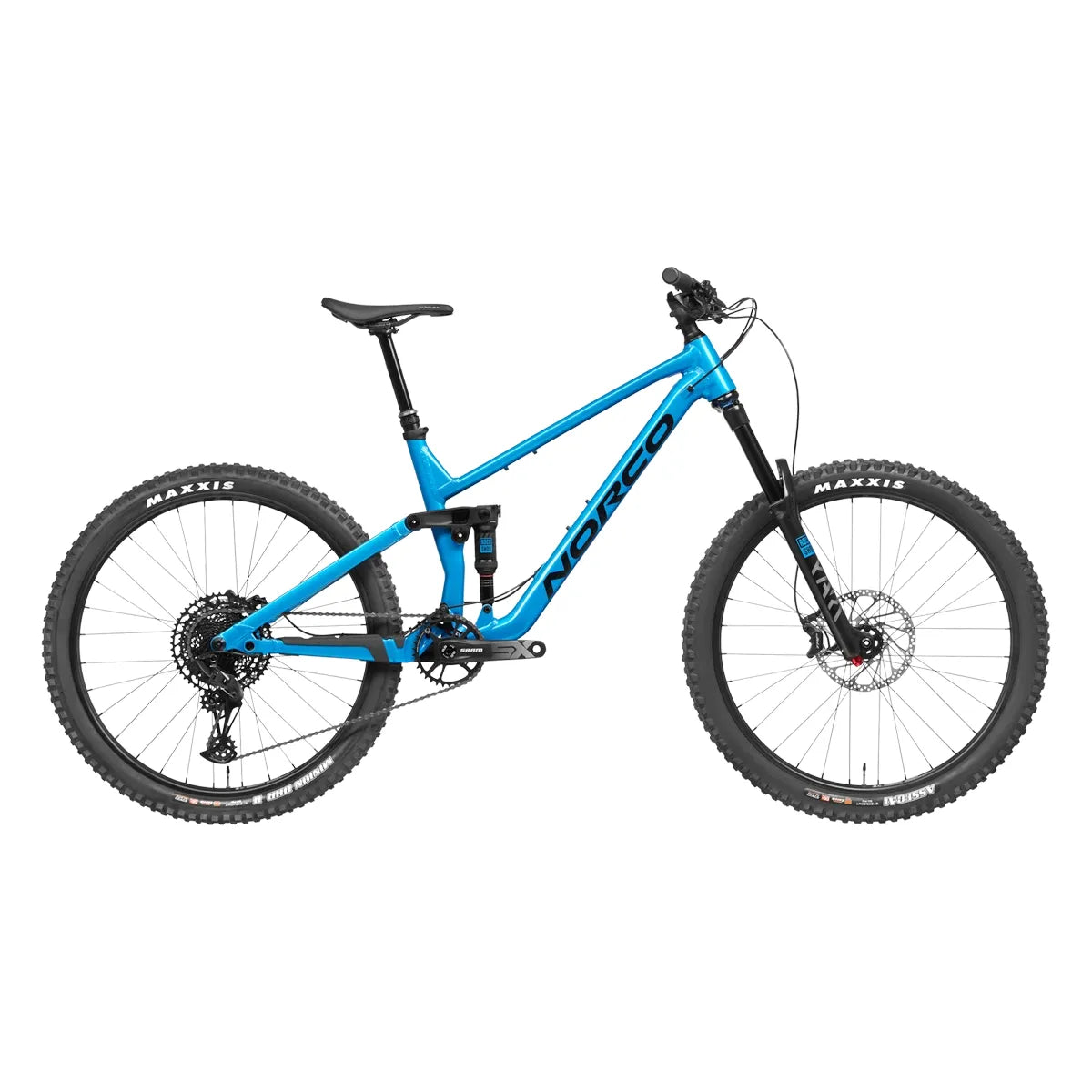

Sight A3 SRAM Mountain Bike
Overview
Frame & Suspension
Frame: Aluminum All-Mountain, 150mm Travel, 27.5" and 29" Options, UDH, Ride Aligned™
Fork: RockShox Yari RC Motion Control, 160mm, 37mm Offset (27.5), 42mm Offset (29)
Rear Shock: RockShox Deluxe Select R, 185x52.5mm Trunnion
Drivetrain
Rear Shifter: SRAM SX Eagle
Rear Derailleur: SRAM SX Eagle
Crankset: SRAM SX Eagle, 34T (27.5), 32T (27.5 S), 32T (29), 170mm
Bottom Bracket: SRAM DUB, BSA
Cassette: SRAM PG1210, 11–50T, 12 Speed
Chain: SRAM SX Eagle
Chain Guide: GW Top Guide
Brakes
Front Brake: Tektro Slate EVO, 4 Piston
Front Rotor: Tektro, 200mm
Rear Brake: Tektro Slate EVO, 4 Piston
Rear Rotor: Tektro, 180mm
Brake Levers: Tektro Slate EVO
Components
Handlebar: Butted 6061 Alloy, 800mm, 25mm Rise
Stem: Alloy, 40mm Length, 35mm Clamp
Seatpost: TranzX YS105 Dropper, 34.9mm — 150mm (S), 170mm (M), 200mm (L, XL)
Headset: FSA #57 E Sealed Bearing, Tapered
Headset Spacers: 3x10mm / 1x5mm / 1x2.5mm
Saddle: SDG Bel Air V3
Grips: Pro Palm Lock-On
Wheels & Tires
Front Hub: Sealed Bearing, 15x110mm Boost, 6-Bolt
Rear Hub: Sealed Bearing, 12x148mm Boost, 6-Bolt
Rims: WTB ST i30, 32H
Front Tire: Maxxis Assegai 2.5" 3C MaxxTerra / EXO+ / TR, Folding
Rear Tire: Maxxis Minion DHR II 2.4" WT 3C MaxxTerra / EXO+ / TR, Folding
Spokes / Nipples: Stainless Black
Valves: WTB Tubeless Presta
Sealant: Stan’s – 200ml
Sizing
Not sure of your size? Call 416.769.0606 or come by 2100 Bloor St W and we’ll size you up.
Delivery and pickup
Free local delivery on bikes within the GTA, free pickup at 2100 Bloor St W, and shipping anywhere in Canada. See the shipping page for details.
Returns
Questions about a return or exchange? Read the refund policy or call the shop.
