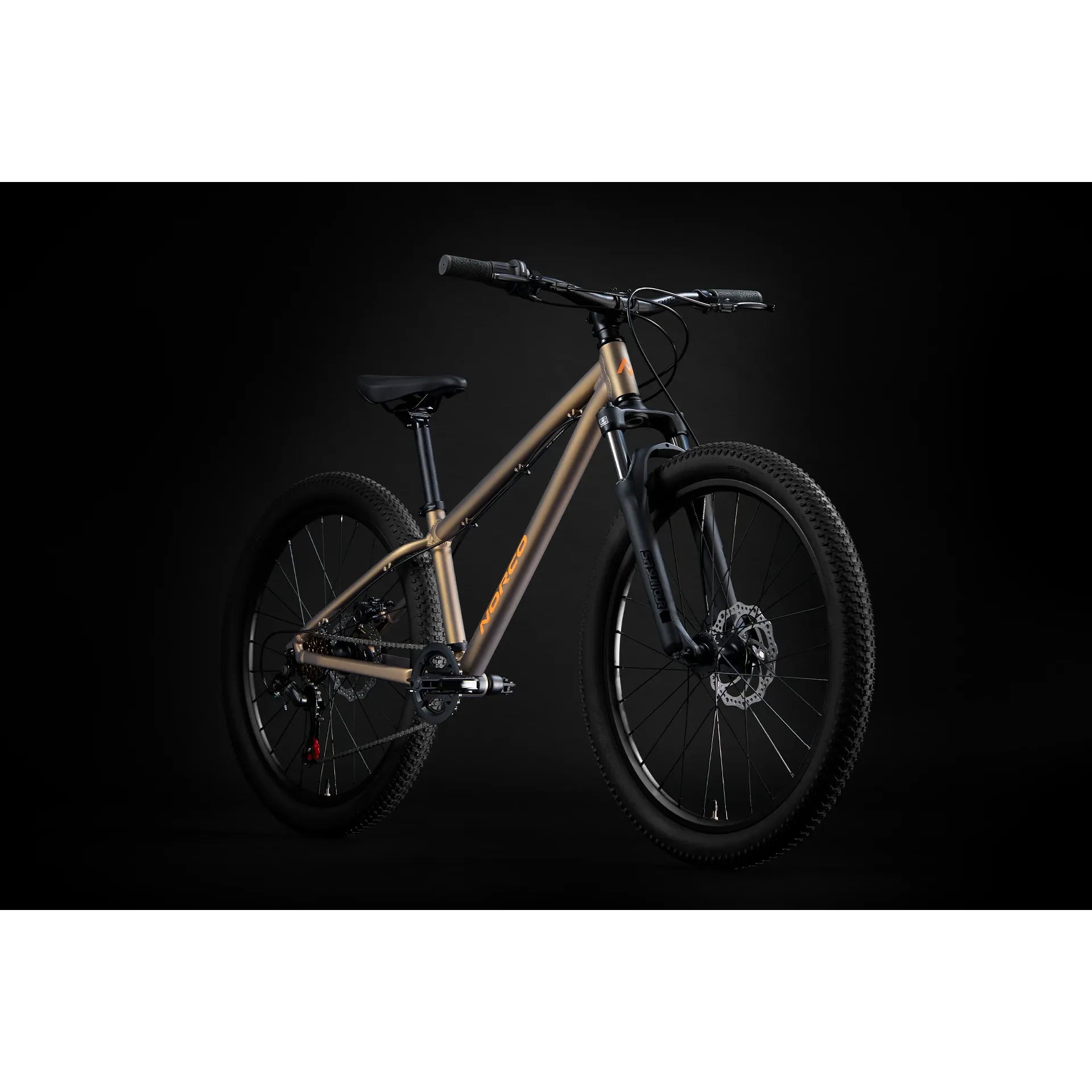

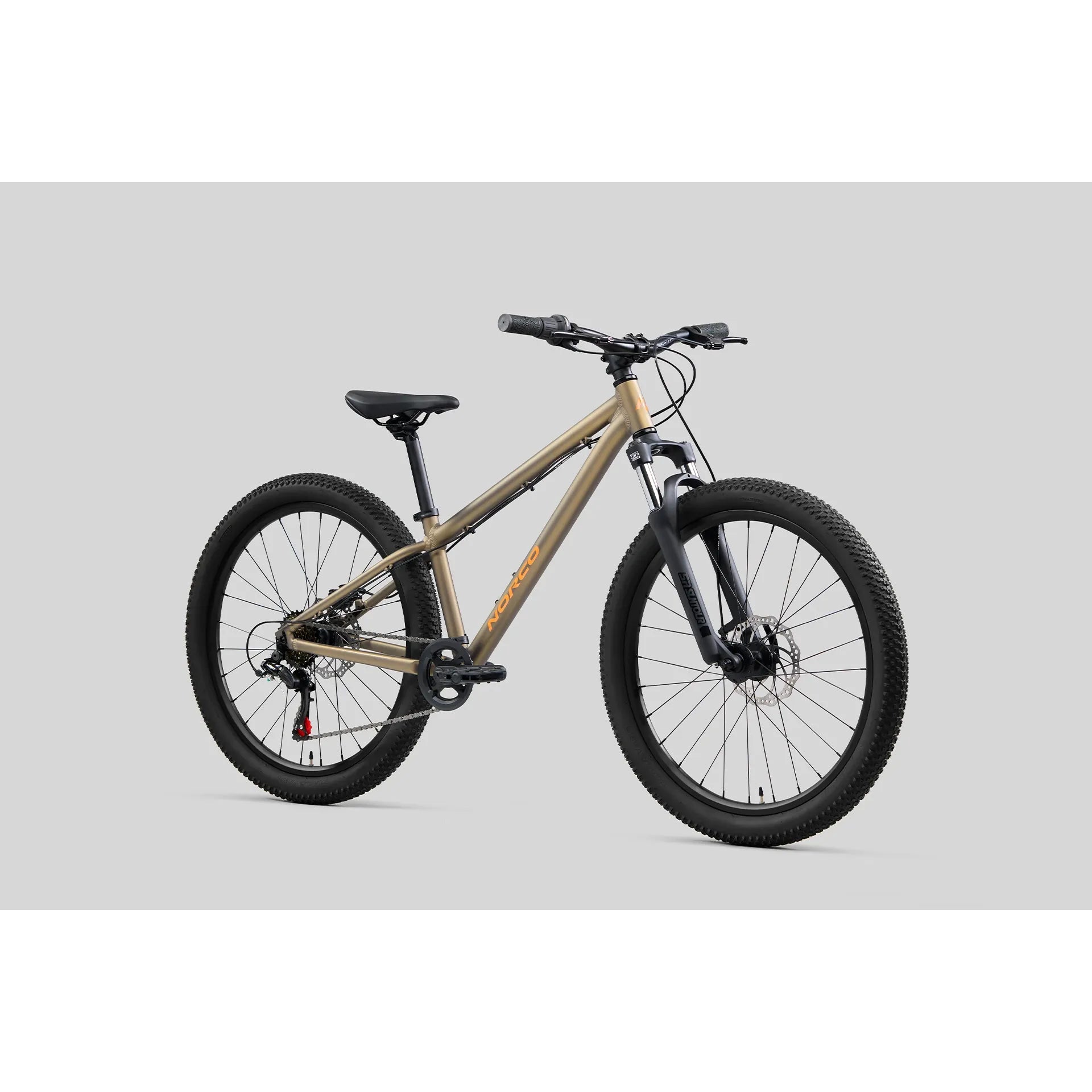

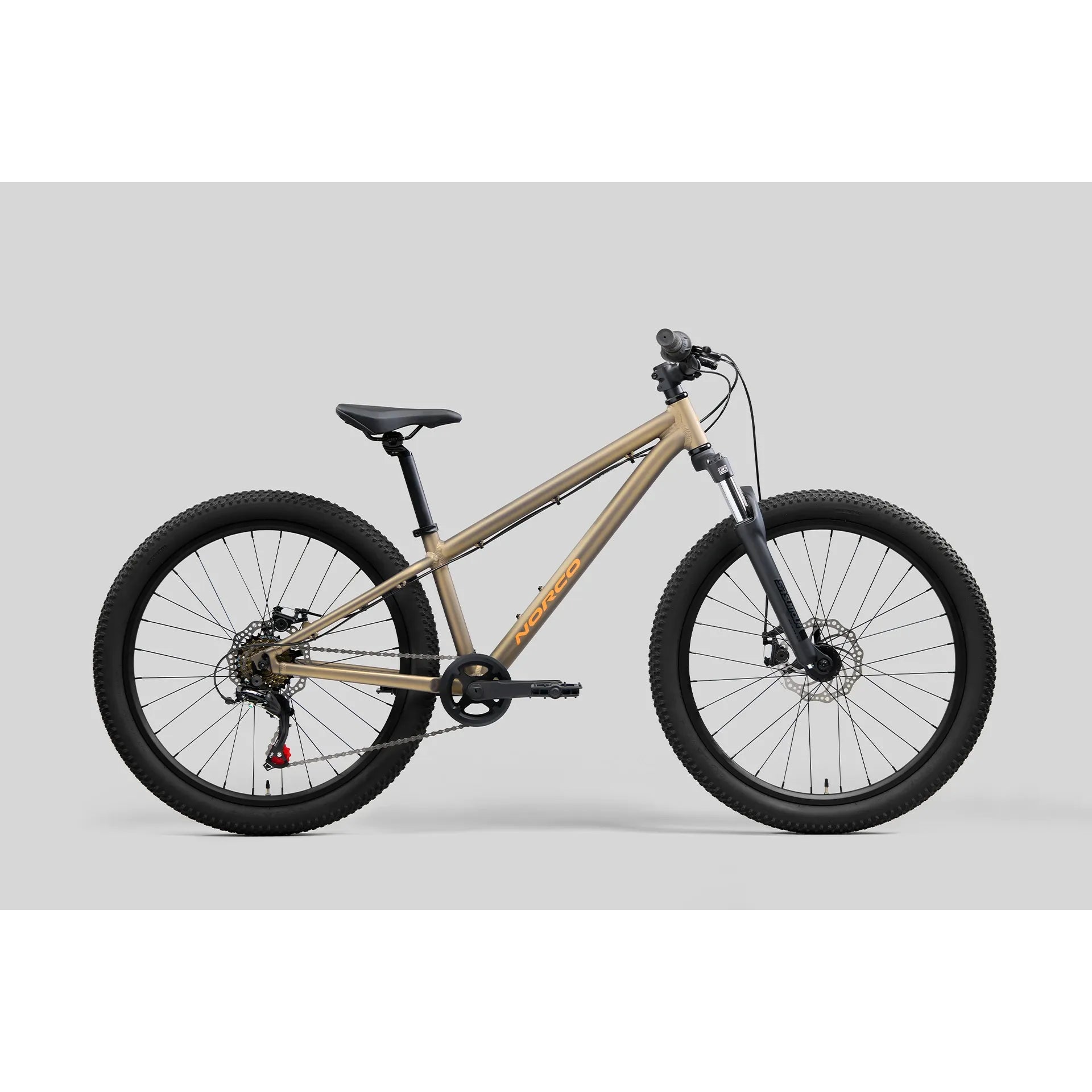

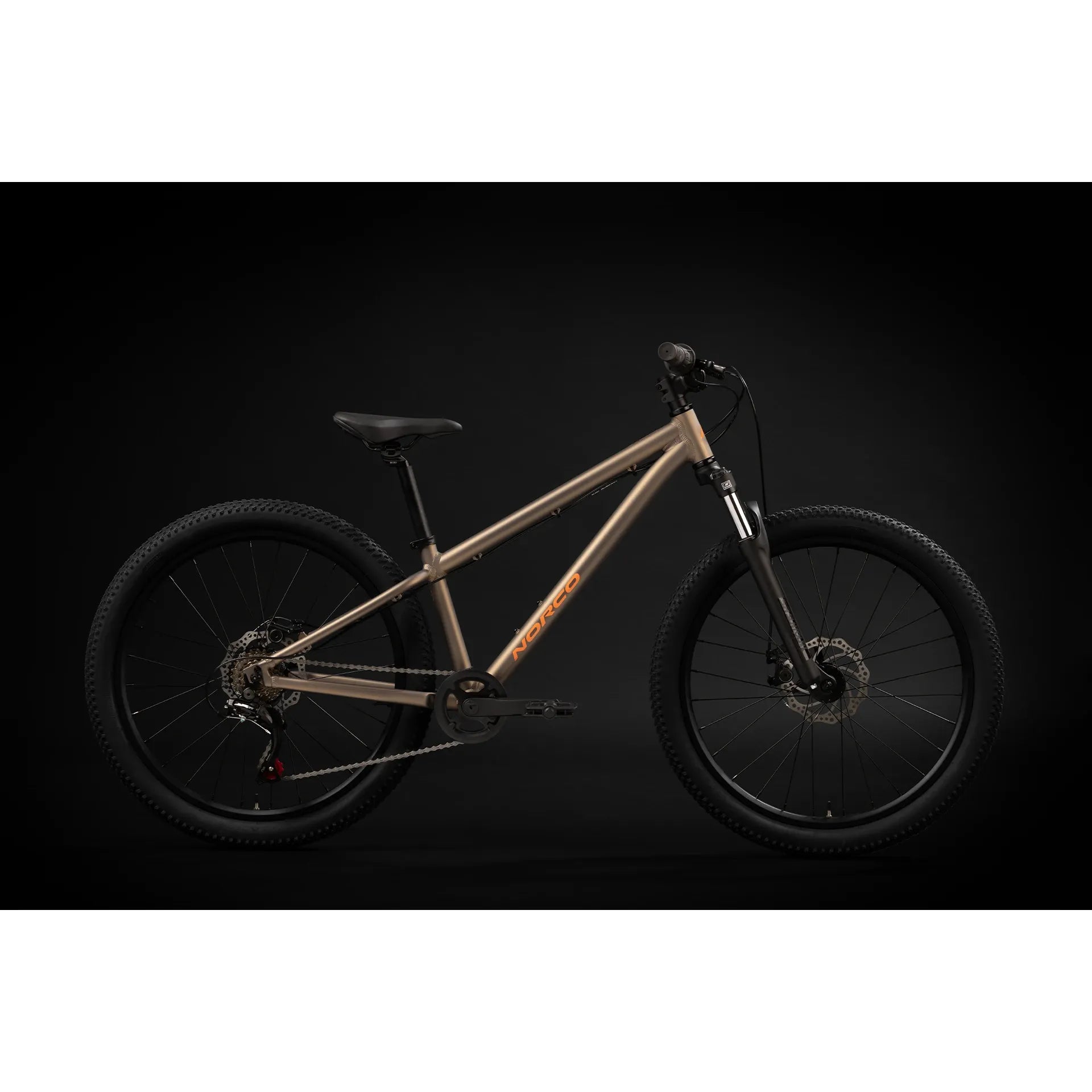

Storm 24

Frameset
Frame: Aluminum, 9x135mm QR, 24"
Fork: SR Suntour XCT Coil w/ Soft Spring and Preload, 80mm, 9x100 QR

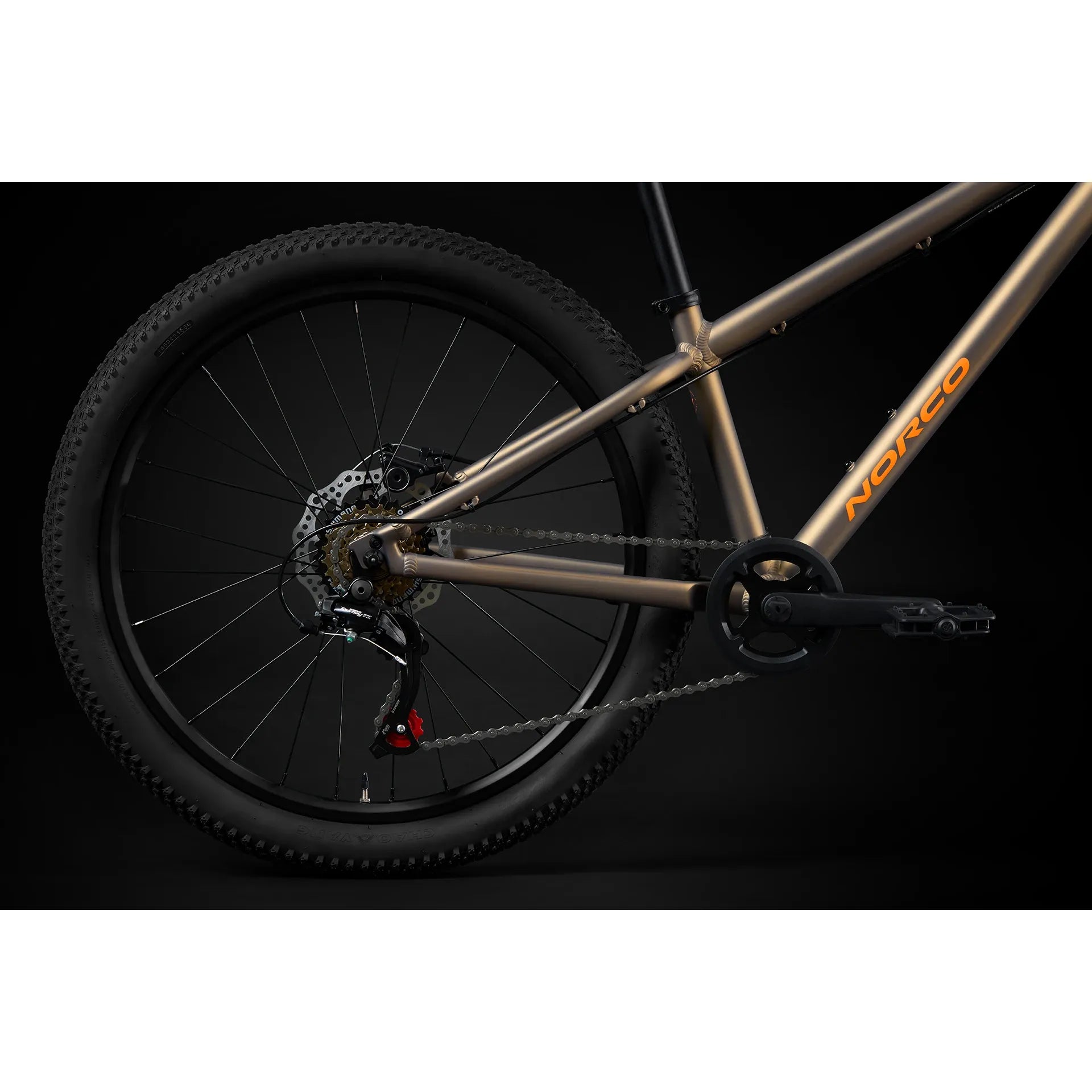

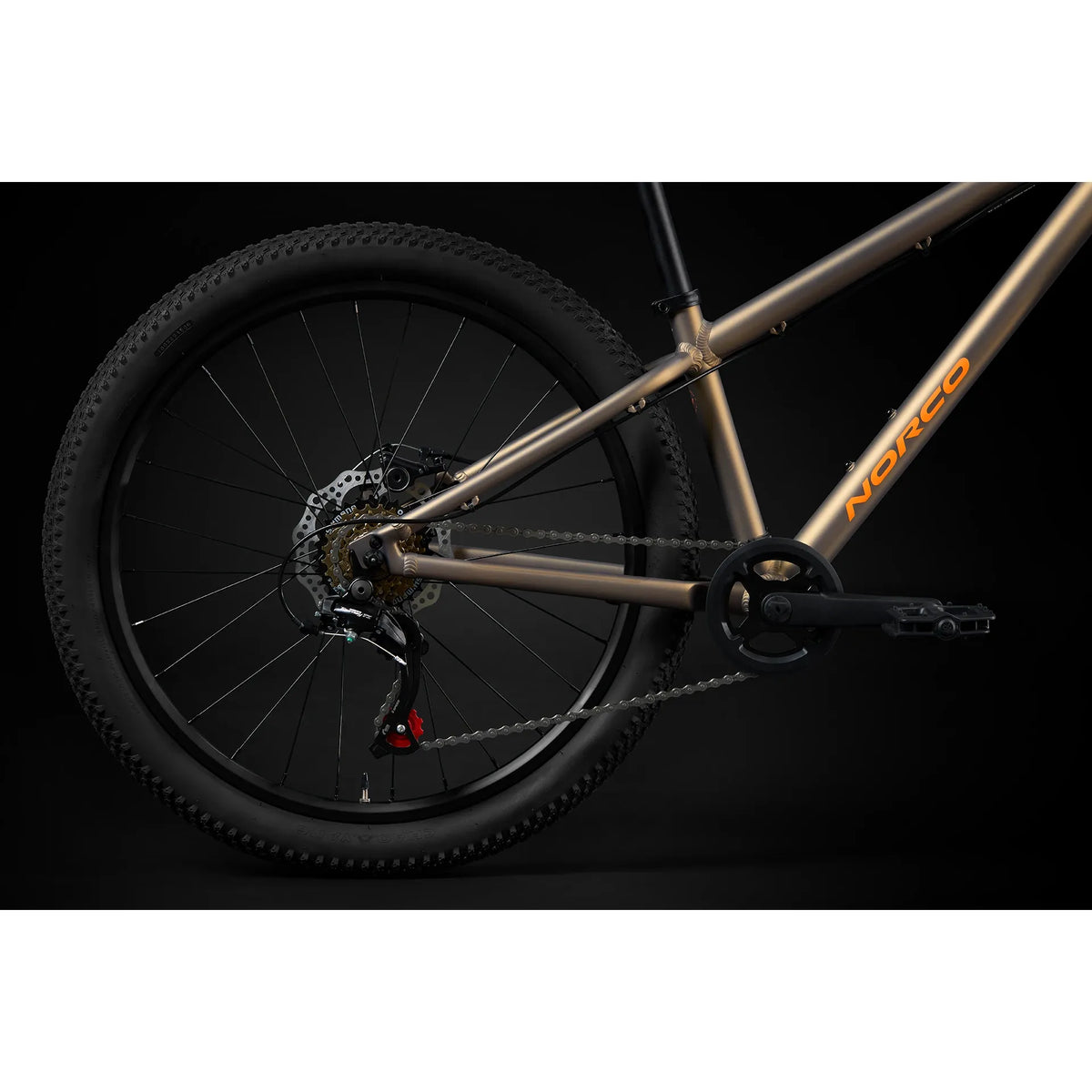

Drivetrain
Rear Shifter: Shimano SL-RV200-6R, 6sp, GripShift
Rear Derailleur: Shimano TZ-500, 6sp, Direct Mount
Crankset: Alloy 3pc, 140mm, 28T Narrow Wide
Bottom Bracket: Sealed Bearing, ST 68mm
Cassette: Shimano MF-TZ500-6, 14–28T, 6sp, Freewheel
Chain: KMC Z6

Brakes
Front Brake: Tektro Aries, Resin Pads, Mechanical Disc
Front Brake Rotor: 160mm, 6-Bolt
Rear Brake: Tektro Aries, Resin Pads, Mechanical Disc
Rear Brake Rotor: 160mm, 6-Bolt
Brake Levers: Tektro Aries Alloy Jr. Levers w/ Reach Adjust

Components

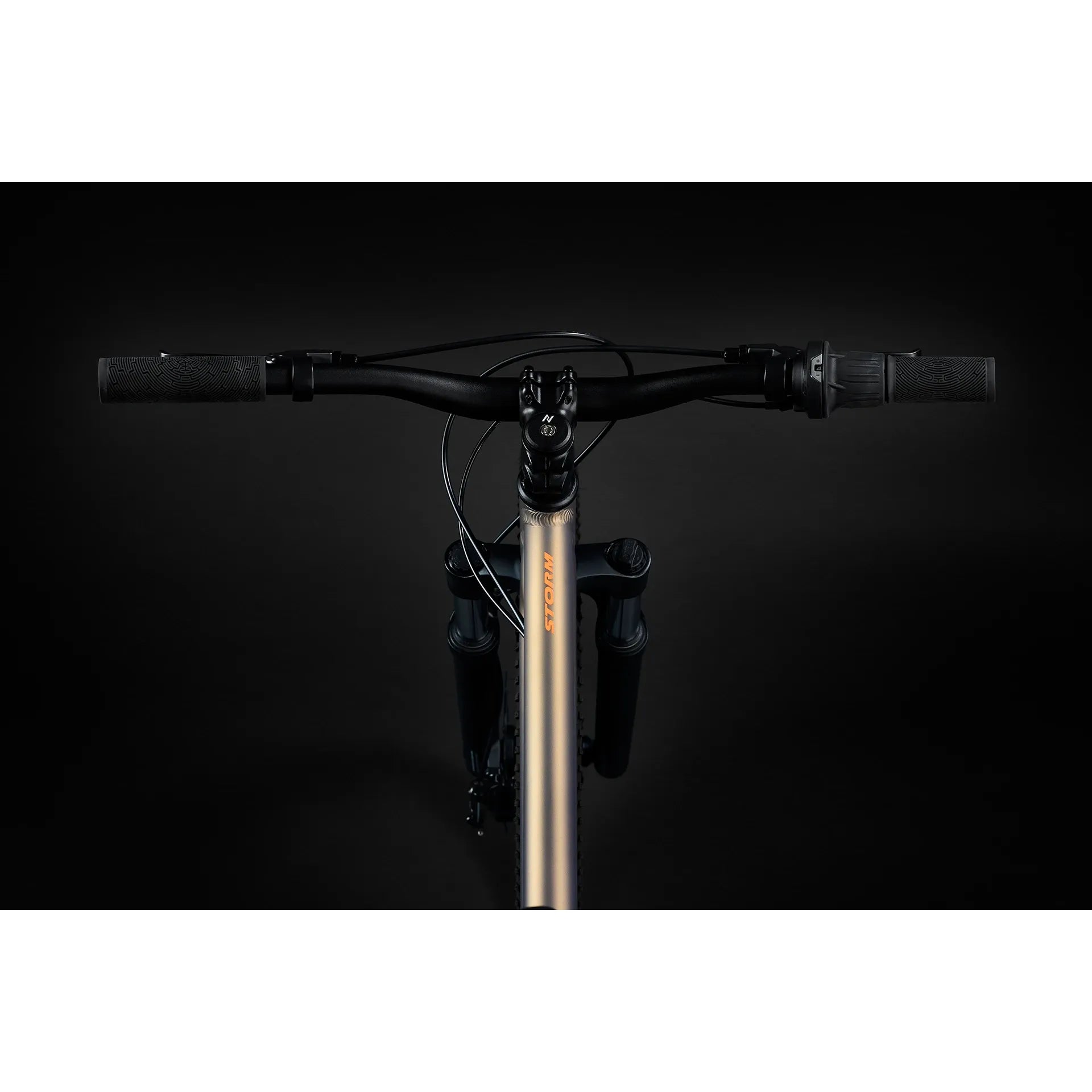

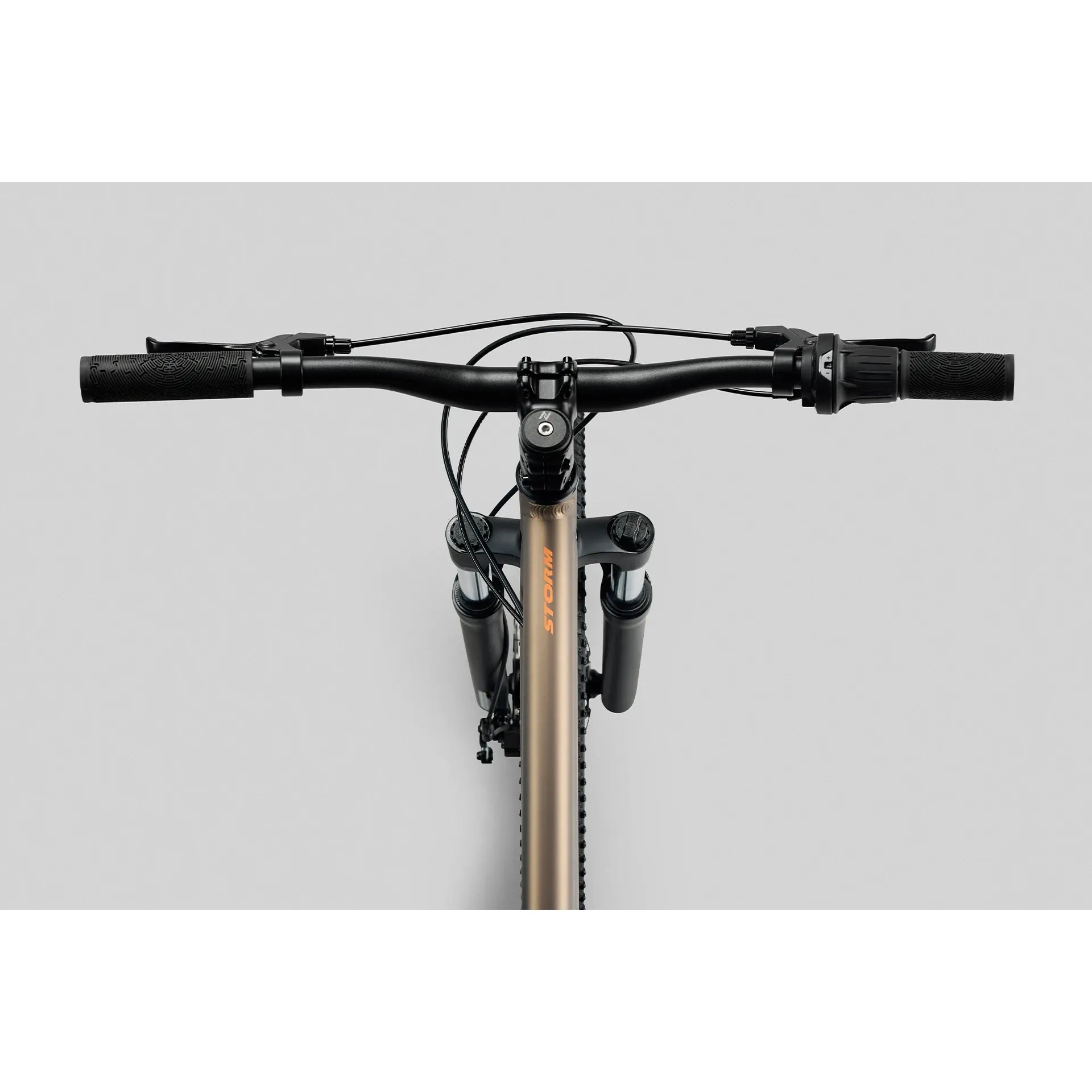

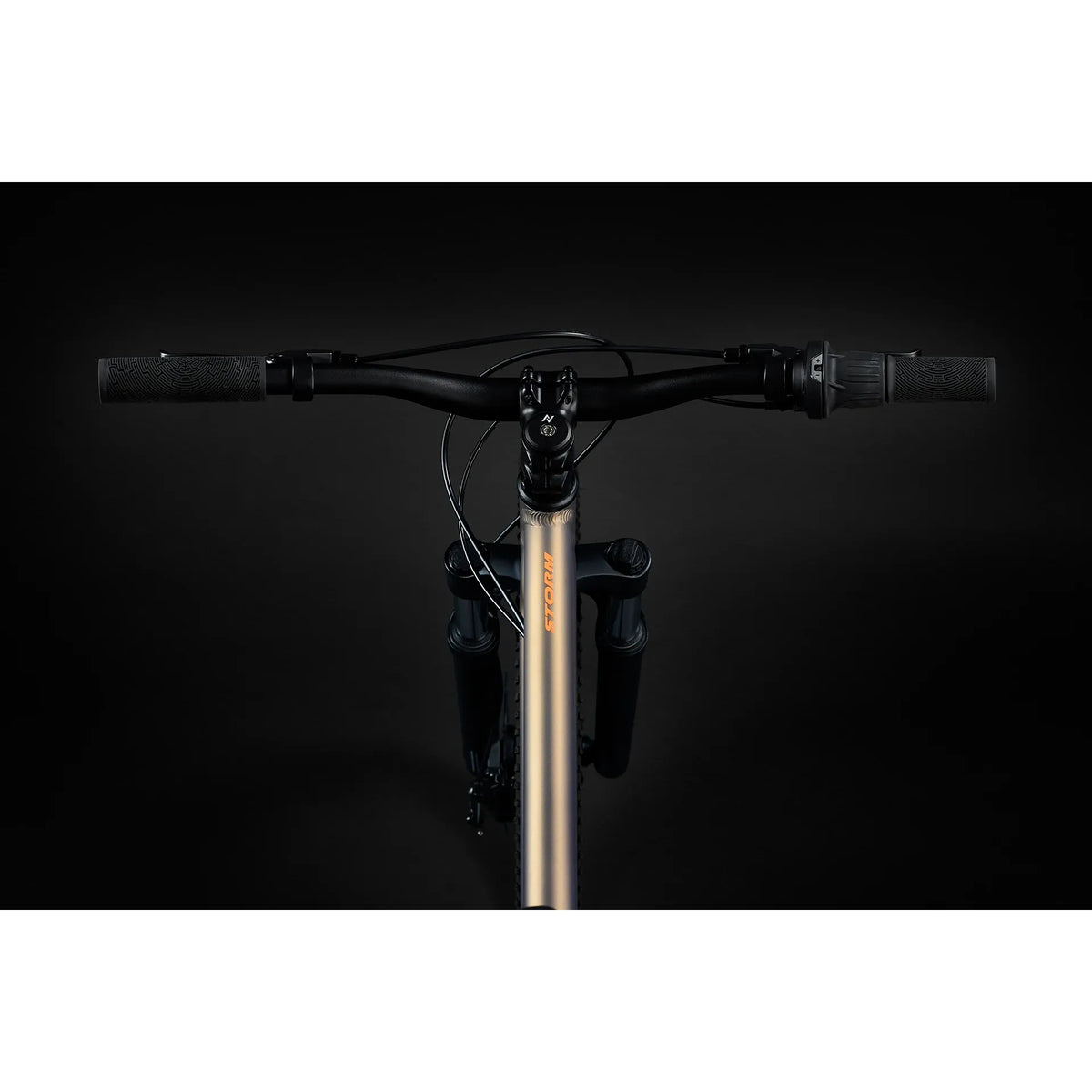

Handlebar: Alloy Jr. Riser, 600mm, 30mm Rise
Stem: Alloy 40mm Length, 31.8mm Clamp
Seatpost: Norco Alloy 27.2mm, 250mm Length
Headset: External Cup Ball Bearing, 1-1/8" EC34
Headset Spacer: 1x10mm, 2x5mm
Saddle: Norco Jr XC, Steel Rail
Grips: Norco Youth, 115mm Length
Pedals: Jr. MTB Flat, 9/16"
Seatpost Clamp: Norco Alloy Bolted, 31.8mm ID

Wheels
Front Hub: Formula DC-1420, 9x100mm QR, 28H, 6-Bolt
Rear Hub: Formula DC-31R-7S, 9x100mm QR, Freewheel, 28H, 6-Bolt
Rims: Aluminum DW, 28H, 24" MTB
Front Tire: CY Trail, 24x2.25", Wire
Rear Tire: CY Trail, 24x2.25", Wire
Spokes/Nipples: Stainless Steel w/ Brass Nipples – Black

Weight
Weight: 12.04 kg (26.5 lbs)
